Technical Data Engine M96/20: Engine
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

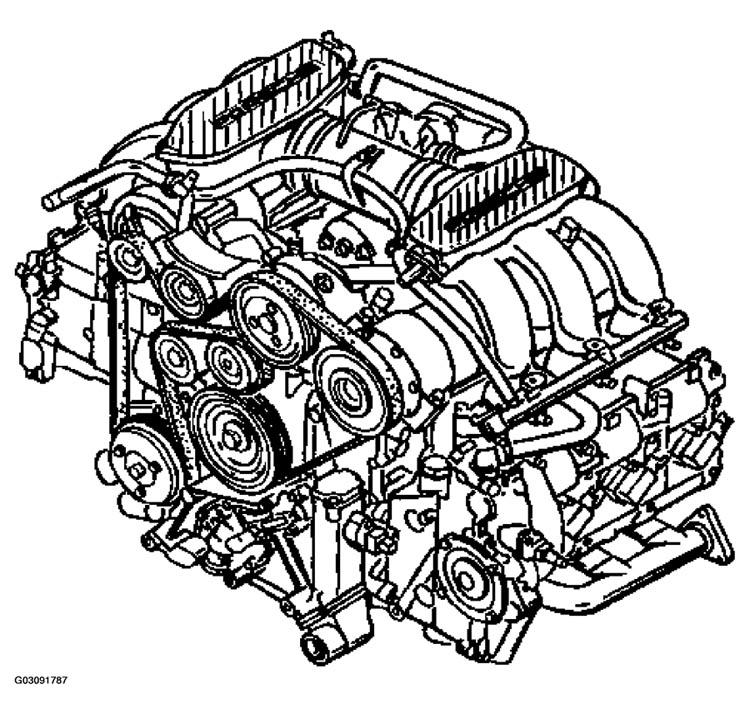

TECHNICAL DATA ENGINE M96/20 (2.5L)
| Engine Type: | M 96/20 | |
|---|---|---|
| Number of cylinders | 6 | |
| Bore | mm | 85.5 |
TECHNICAL DATA ENGINE M96/20 (2.5L)
| Engine Type: | M 96/20 | |
|---|---|---|
| Stroke | mm | 72 |
| Displacement | cm [sup3 ] | 2480 |
| Compression ratio | 11.0 : 1 | |
| Max. engine power | ||
| as per 80/1269/EWG | kW | 150 |
| as per SAE J 1349 | HP | 201 |
| at engine speed | rpm | 6000 |
| Max. torque | ||
| as per 80/1269/EWG | Nm (ft.lb) | 245 (181) |
| at engine speed | rpm | 4500 |
| Max. liter output | ||
| as per 80/1269/EWG | kW/l, HP/l | 60.48/82.26 |
| Idle speed - manual transmission | rpm | 790 |
| Tiptronic sel. lever in P or N | rpm | 750 |
| Tiptronic sel. lever in drive position | rpm | 790 |
| and A/C on | rpm | 800 |
| Rpm limitation at | rpm | 6700 |
| Engine weight | ||
| Manual transmission | kg | 182.2 |
| Tiptronic transmission | kg | 172.7 |
| Valve control | DOHC with camshaft adjustment (VarioCam) | |
| Valve arrangement per cylinder | 2 inlet, 2 outlet, suspended parallel V-arrangement | |
| Valve clearance | Hydraulic valve clearance compensation | |
| Valve timing with 1 mm valve travel | Inlet opens 15° after TDC | |
| Valve timing with 1 mm valve travel | Inlet closes 46° after BDC | |
| Valve timing with 1 mm valve travel | Outlet opens 38° before BDC | |
| Valve timing with 1 mm valve travel | Outlet closes 7° before TDC | |
ENGINE COOLING M96/20 (2.5L)
| Engine Cooling | |
|---|---|
| Type | Liquid cooling, two electric fans |
ENGINE LUBRICATION INTEGRATED DRY SUMP (2.5L)
| Engine Lubrication | Integrated dry sump | |
|---|---|---|
| Oil cooling | Via oil-water heat exchanger | |
| Oil pressure at 5000 rpm | ||
| Oil temperature 90°C | bar | approx. 5 |
| Oil consumption | I/1000 km | up to 1.5 |
ENGINE FUEL SYSTEM INJECTION (2.5L)
| Fuel System | DME 5.22 with sequential fuel injection | |
|---|---|---|
| Fuel delivery | 1 electr. fuel pump | |
| System pressure without vacuum | bar | 3.6... 4.0 |
| Fuel RON/MON | at least 98/88 |
FUEL CONSUMPTION (2.5L)
| Fuel Consumption as per 93/116/EG | |||
|---|---|---|---|
| Manual transmission | Tiptronic | ||
| City | I/100 km | 14.3 | 15.8 |
| Highway | I/100 km | 7.1 | 8.1 |
| Overall | I/100 km | 9.7 | 10.9 |
| Target CO2 value | g/km | 239 | 263 |
| Emission control | Oxygen sensing and three-way catalytic converter (metallic substrate) | ||
ELECTRICAL SYSTEM ENGINE M96/20 (2.5L)
| Electrical System | - | Specification |
|---|---|---|
| Nominal voltage | V | 12 |
| Alternator output | W/A | 1680/120 |
| Battery, manual transmission | Ah/A | 60/280 |
| Battery, Tiptronic | Ah/A | 70/320 |
| Ignition | DME 5.22, with static high-voltage distribution and cylinder-selective knock regulation | |
| Ignition sequence | - | 1 - 6 - 2 - 4 - 3 - 5 |
| Spark plugs | ||
| Bosch | - | FR 7 LDC 4 |
| Beru | - | 14 FR 7 LDU |
| Electrode gap | mm | 0.8 + 0.1 |
