Disassembling And Assembling Inlet Camshaft - As Of My 2003: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When working on the engine, absolute cleanliness is essential! An engine cover should be used on the engine assembly support. Lay removed engine parts on a clean base and cover them without fail. Even the smallest particles of dirt can block up oil bores.

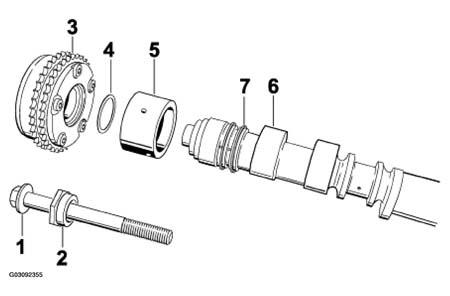

Presumable inlet camshaft before inserting in cylinder head
REMOVAL AND INSTALLATION PROCEDURE FOR INLET CAMSHAFT (AS OF MY 2003)
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Central screw | 1 | Replace | |||
| 2(1) | Adapter | 1 | Re-use | |||
| 3(1) | Camshaft adjustment device | 1 | Observe identification! | |||
| 4(1) | Diamond washer | 1 | Replace | |||
| 5(1) | Bearing sleeve | 1 | Pay attention to the installation position! Inscription should face towards camshaft | |||
| 6(1) | Inlet camshaft | 1 | Do not damage rotor cover | Do not damage rotor cover | ||
| 7(1) | Rectangular rings | 2 | ||||
|
||||||
