Disassembling And Assembling Cylinder Head: Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

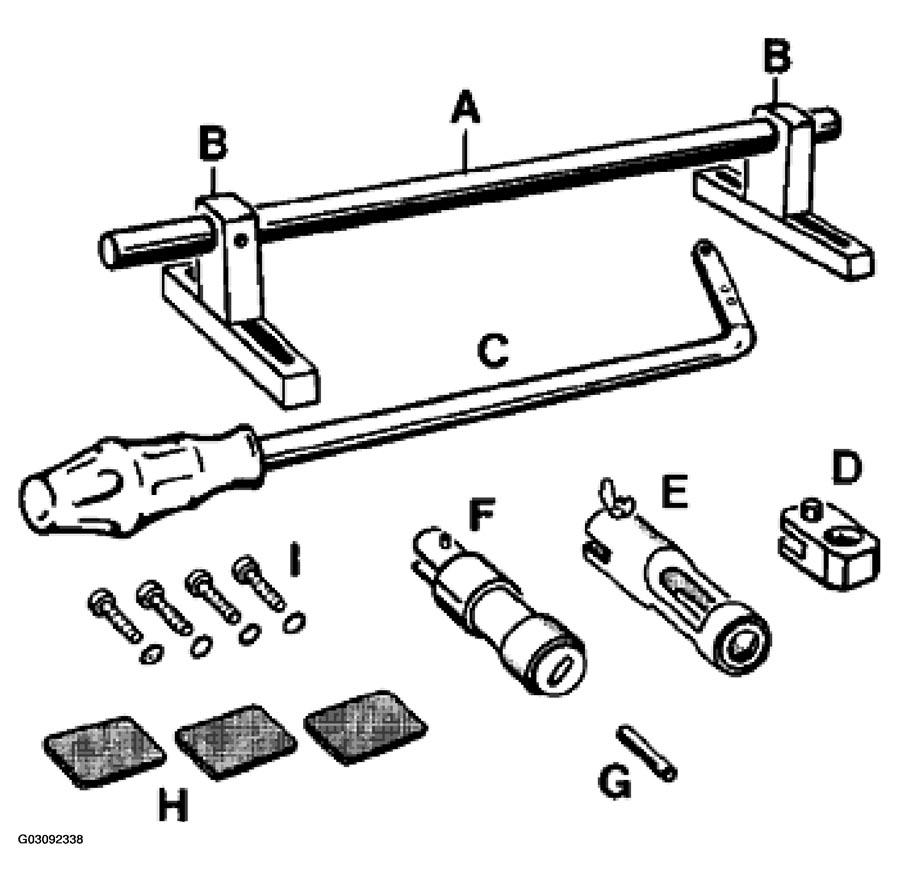

Fig 1: Identifying Special Tools (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS (1 OF 2)

Item

Designation

Explanation

A⁽¹⁾

Shaft ($$ 20 x 450 mm)

Art. No. 6024515

B⁽¹⁾

Aluminum supports (1 pair)

Art. No. 6023620

C⁽¹⁾

Lever arm

Art. No. 6023530

D⁽¹⁾

Joint with screw

Art. No. 6024520

E⁽¹⁾

Magnetic disassembly head

Art. No. 6024650

F⁽¹⁾

Assembly head 1b for valve keys

Art. No. 6000102

G⁽¹⁾

Pressure piece 6e (3 ea.)

Art. No. 6006015

H⁽¹⁾

Pad for valve discs (3 ea.)

Art.-No. 6025665 (Items A to H)

I⁽¹⁾

Screws for aluminum supports (4 ea.)

Commercially available, M6 x 40

⁽¹⁾	For explanation see Fig 1.

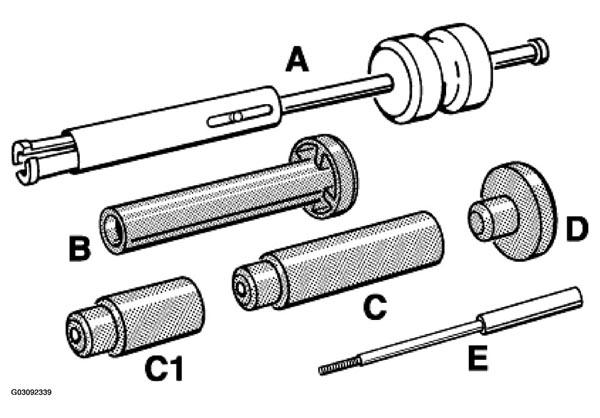

Fig 2: Identifying Special Tools (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS (1 OF 2)

Item

Designation

Special tool

Explanation

A⁽¹⁾

Extractor for valve stem seal

3364

VW special tool

B⁽¹⁾

Press-on tool for valve stem seal

3365

VW special tool

C⁽¹⁾

Pressure piece, for fitting the oil protection tubes

9605

C1⁽¹⁾

Pressure piece, for fitting the oil protection tubes (engine installed)

9605/1

D⁽¹⁾

Hand pressure piece

9604

E⁽¹⁾

Tensioning screw for relieving the tensioning elements (VarioCam)

9632

Use tensioning screw 9632/1 as of engine number 65X19696.

⁽¹⁾	For explanation see Fig 2.
