Fastening Cylinder Heads

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

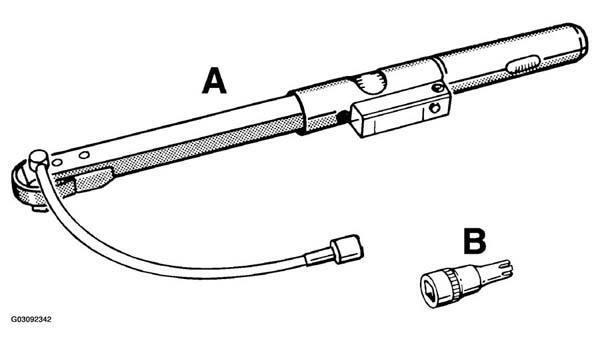

Fig 1: Identifying Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS

Item

Designation

Special tool

Explanation

A⁽¹⁾

Torque angle Torque wrench

B⁽¹⁾

Socket wrench insert Torx T50

9633

Socket wrench insert Torx T55

Commercially available

As of engine number M962065X02485 (modified cylinder head screws)

⁽¹⁾	For explanation see Fig 1.

Fit cylinder head gaskets.
NOTE:
- The gaskets are identified by Zyl. 1 - 3 or Zyl. 4 - 6 with OBEN/TOP, plus the corresponding part number.
- Ensure correct seating of dowel sleeves in crankcase. Put on gaskets.

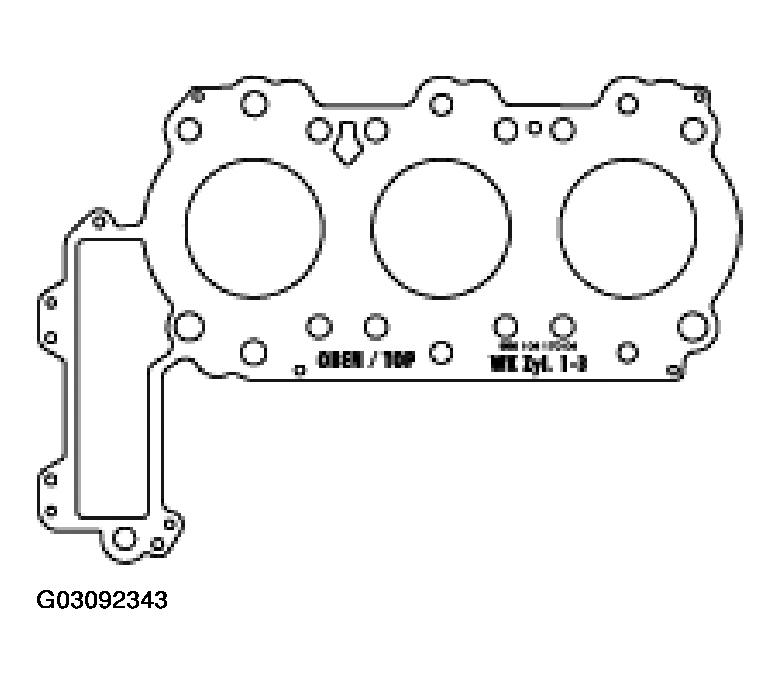

Fig 2: Identifying Cylinder Head Gasket (Cyl. 1-3)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 3: Identifying Cylinder Head Gasket (Cyl. 4-6)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
