Disassembling And Assembling Belt TENSIONER
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

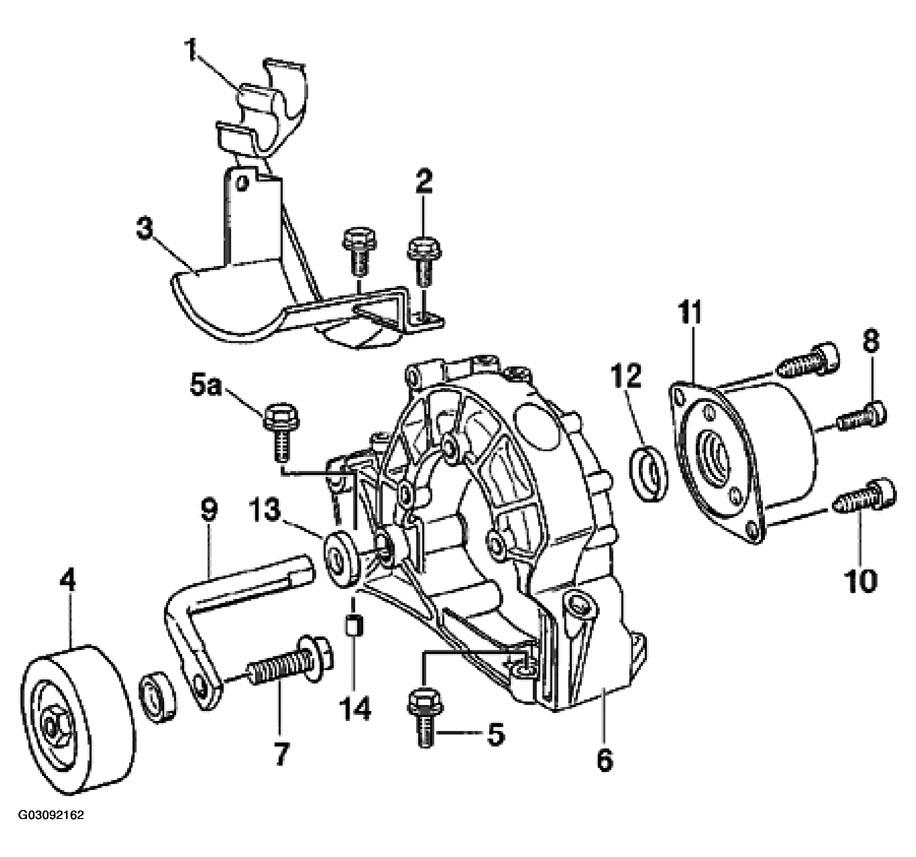

Courtesy of PORSCHE OF NORTH AMERICA, INC. DISASSEMBLY AND ASSEMBLY PROCEDURE OF BELT TENSIONER
| No. |
Designation |
Qty. |
Removal |
Installation |
| 1 |
Holder |
1 |
|
Clip in refrigerant lines |
| 2 |
Hexagon head bolt M6 x 16 |
2 |
|
|
| 3 |
Cover |
3 |
|
|
| 4 |
Tensioning roller |
1 |
Undo at hexagon (wrench size 24) and simultaneously hold at the hexagon head bolt |
Tightening torque 60 Nm (44 ft.lb) Hold at the hexagon head bolt when tightening (wrench size 15) |
| 5 |
Hexagon head bolt M8 x 25 |
2 |
|
|
| 5a |
Hexagon head bolt M8 x 35 |
2 |
|
|
| 6 |
Bracket for hydraulic pump and belt tensioner |
1 |
|
Grease plastic bushings of the lever bearing with Olista Longtime 3 EP |
| 7 |
Hexagon head bolt (micro-encapsulated) |
1 |
The hexagon head bolt can be removed only after the belt tensioner or bracket has been loosened! |
Apply a thin coating of locking lacquer on the tread of the hexagon bolt. See |
| 8 |
Pan-head screw |
1 |
|
Tightening torque 9.7 Nm (7.0 ft.lb) |
| 9 |
Lever |
1 |
Drive out of the tensioning element using a drift ($$ 5) |
Fit in correct position; grease in bearing area |
| 10 |
Pan-head screw |
2 |
|
Tightening torque 23 Nm (17 ft.lb) |
| 11 |
Tensioning element |
1 |
|
|
| 12 |
Dust cap |
1 |
|
|
| 13 |
Dust cap |
1 |
|
|
| 14 |
Dowel sleeve |
2 |
|
Fit in the two bores of the bracket (on right in direction of travel). |
