Repair Of Main Wiring Harness: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The combination wires for ABS and BVA (brake-pad wear indicator) are integrated in the wiring harness. In the event of damage, the integrated wires can be disconnected and replaced by repair wires. The disconnection points are located at the front left and front right above the radiator tank. After repair, the following function tests must be performed:
ABS: Test with the Porsche System Tester 2.
BVA: The indicator light must go out with the engine running and the brake linings intact.
Disconnection point, front left: Join wires between the -arrows- with crimp connectors. See Fig 1 .

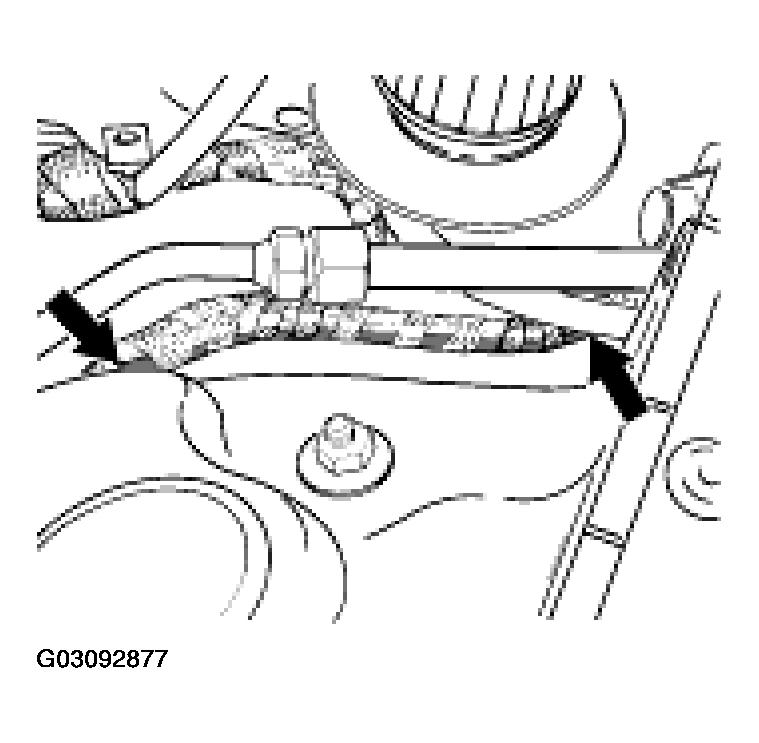

Fig 1: Connecting Wires With Crimp Connectors (Left)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disconnection point, front right: Join wires between the -arrows- with crimp connectors. See Fig 2 .

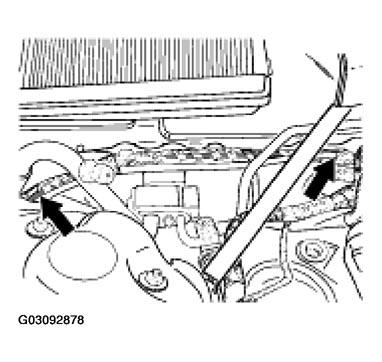

Fig 2: Connecting Wires With Crimp Connectors (Right)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
