Removing fusible element from the current distributor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Danger of injury and damage. The battery must be disconnected before starting the assembly work.
NOTE: See REMOVING AND INSTALLING CURRENT DISTRIBUTOR  .

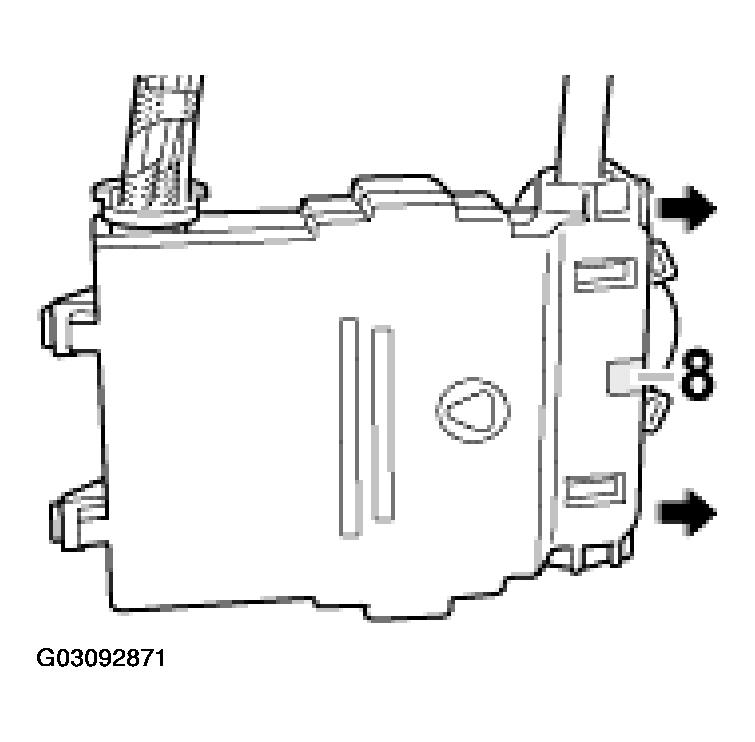

Fig 1: Removing Current Distributor Cover
G03092871Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Remove cover for current distributor and remove the service label.

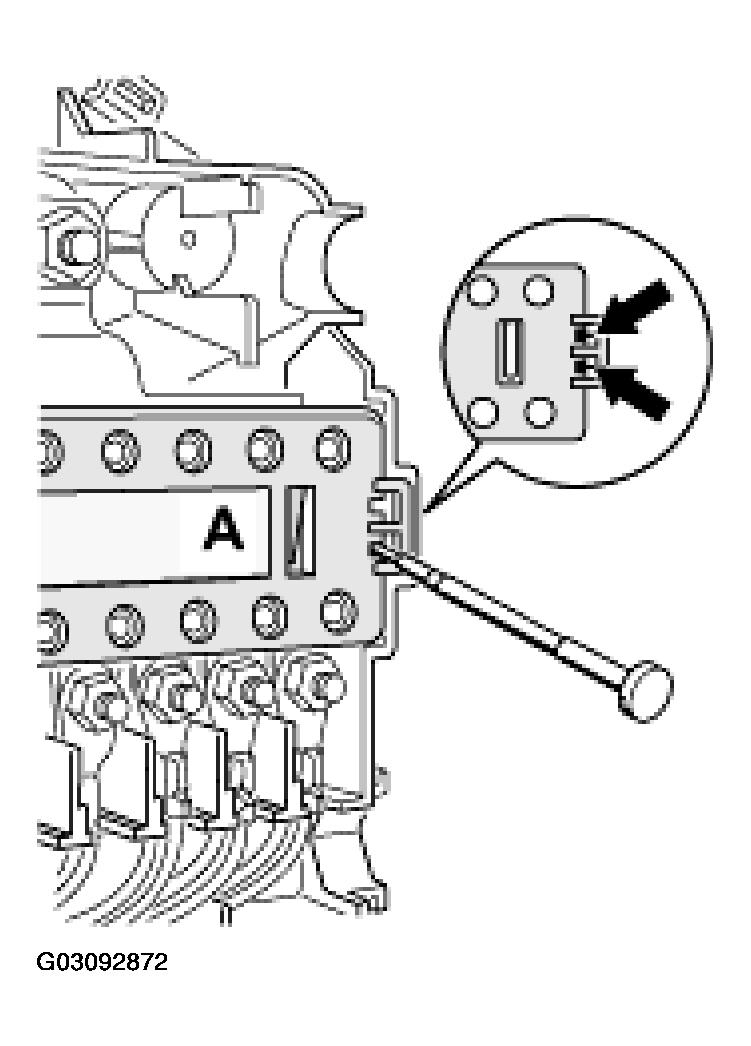

    Fig 2: Removing Current Distributor Service Label
    G03092872Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Carefully lever off the cover -A-  , e.g. with a screwdriver -arrow-.  . See Fig 2 . This will break the locking tabs and the cover can be removed.
  3. Remove the broken locking tabs from the current distributor.

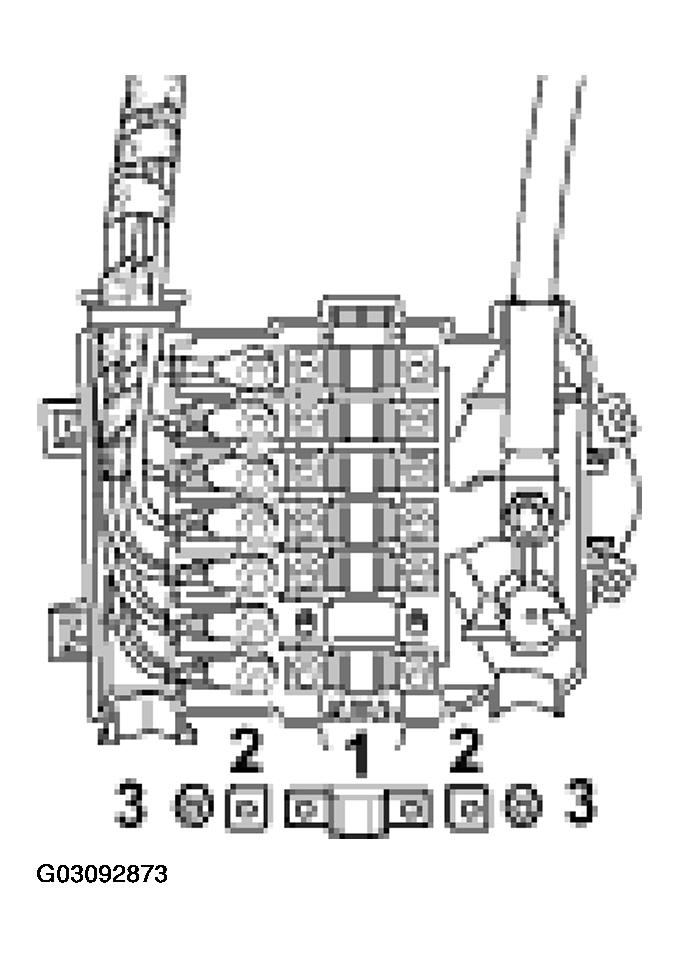

    Fig 3: Removing Current Distributor Broken Locking Tabs
    G03092873Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Unscrew the two hexagon nuts M 5 -3-  from the blown fusible element -1- and remove with the washers -2-  . See Fig 3 .
