Removing Current Distributor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

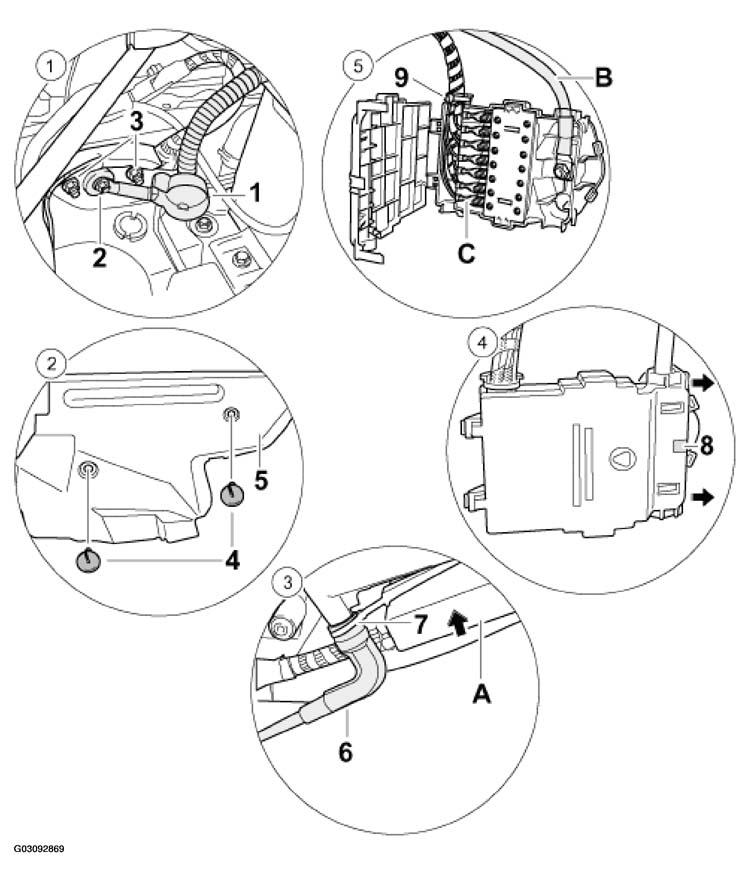

Fig 1: Identifying Current Distributor Removal Sequence

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CURRENT DISTRIBUTOR REMOVAL SEQUENCE

No.

Procedure

Instructions

Disconnect battery

Remove the battery cover and the cover of the right radiator tank.
Removing and installing cowl panel cover. Refer to REMOVING AND INSTALLING COWL PANEL COVER .
Refer to WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
Disconnect and cover the ground terminal on the battery

Current distributor fastening

Pull off the covering cap -1-2-3- ⁽¹⁾

Cover in passenger's footwell

Unscrew both plastic screws -4-5- ⁽¹⁾

Lowering the current distributor

Disconnect the tie-wrap -7-6-6-A-arrow- ⁽¹⁾

Opening the current distributor

Disengage the lock -arrow-8-green-red-blue- ⁽¹⁾

Disconnecting the connection lines

Mark the connection lines -C-C-B-9- ⁽¹⁾

⁽¹⁾

Fig 1
