Removing And Installing Optical Contacts On Connector Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the secondary locking with the press-out tool. Insert the tool in the opening provided and lift the locking. The locking engages in the upper position. See TOOLS  .

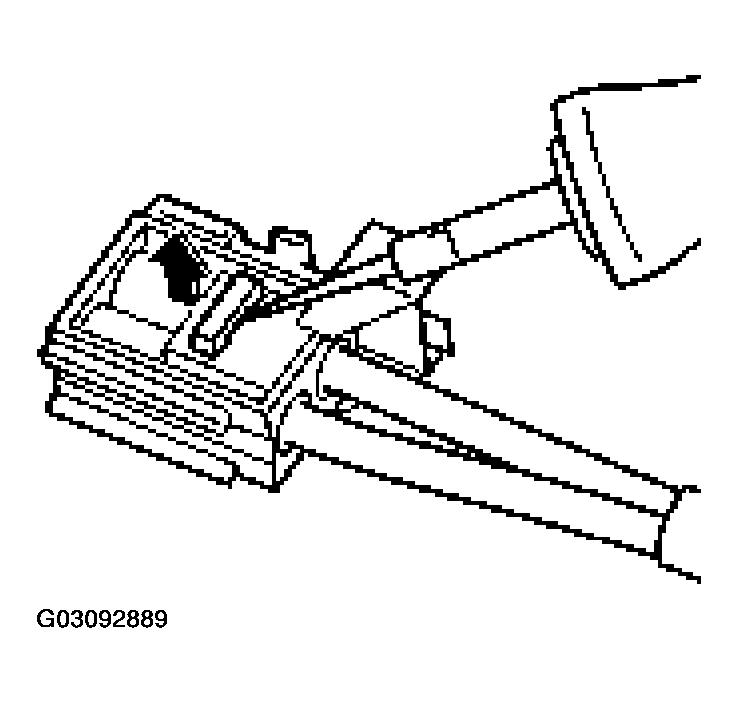

    Fig 1: Opening Secondary Locking With Press-Out Tool
    G03092889Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Place the tool on the primary locking and lift the locking.

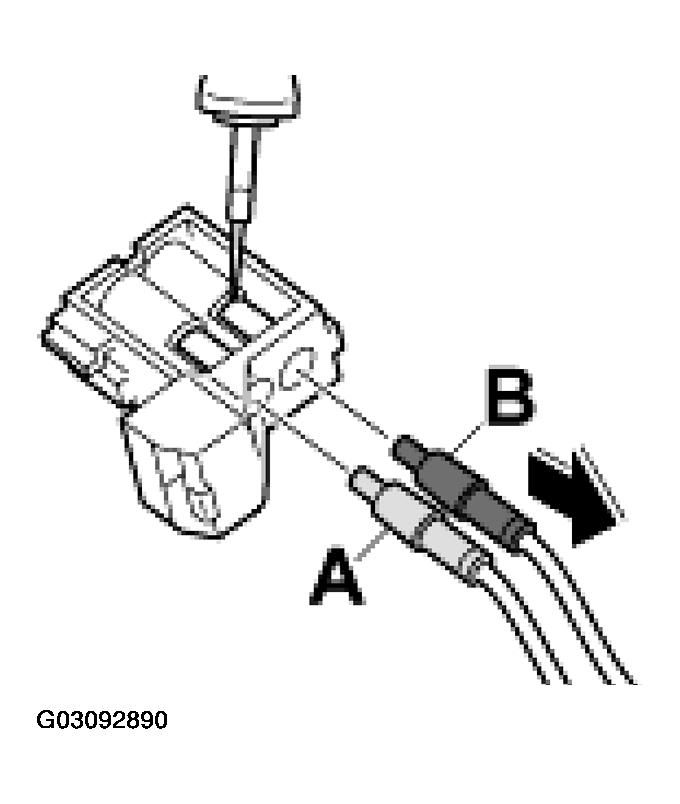

    Fig 2: Placing Tool On Primary Locking
    G03092890Courtesy of PORSCHE OF NORTH AMERICA, INC.
    • -A-  Optical contact, grey see Fig 2 .
    • -B-  Optical contact, black see Fig 2 .
  3. Pull LWL, for example, -B-  carefully in the -direction of the arrow-  . See Fig 2 . If it is not possible to pull out the LWL, check again if the secondary locking is completely released and if the primary locking is raised sufficiently.
    • Visual inspection of lockings, connector housing, and contacts for possible damage and if necessary, exchange the damaged parts.
