Removing And Installing Optical Contacts: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

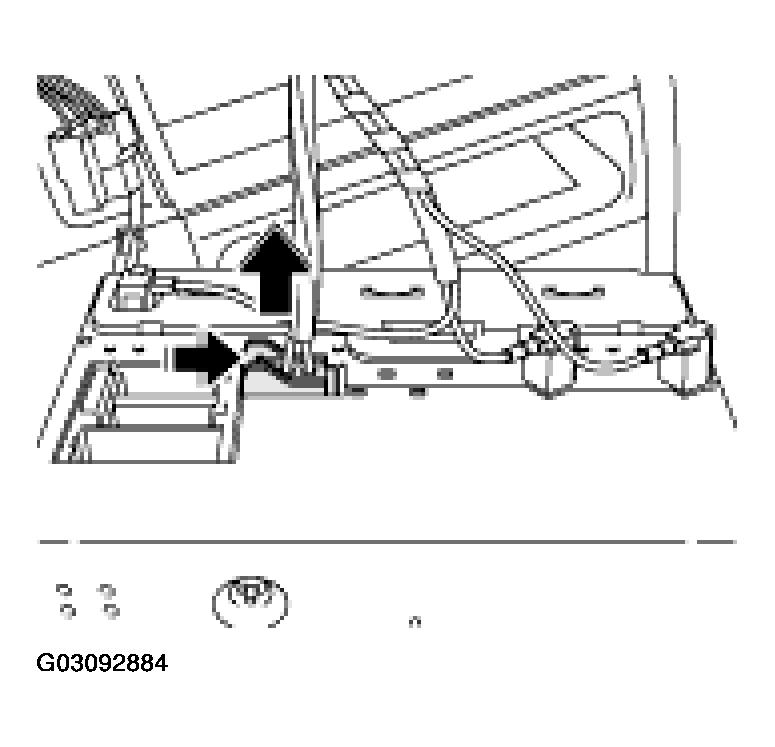

Fig 1: Disconnecting PCM Plug Connection

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Remove PCM. Refer to REMOVING AND INSTALLING DISPLAY AND OPERATOR . Remove and install the operator control unit (PCM2).
Disconnecting the plug connection on the amplifier:

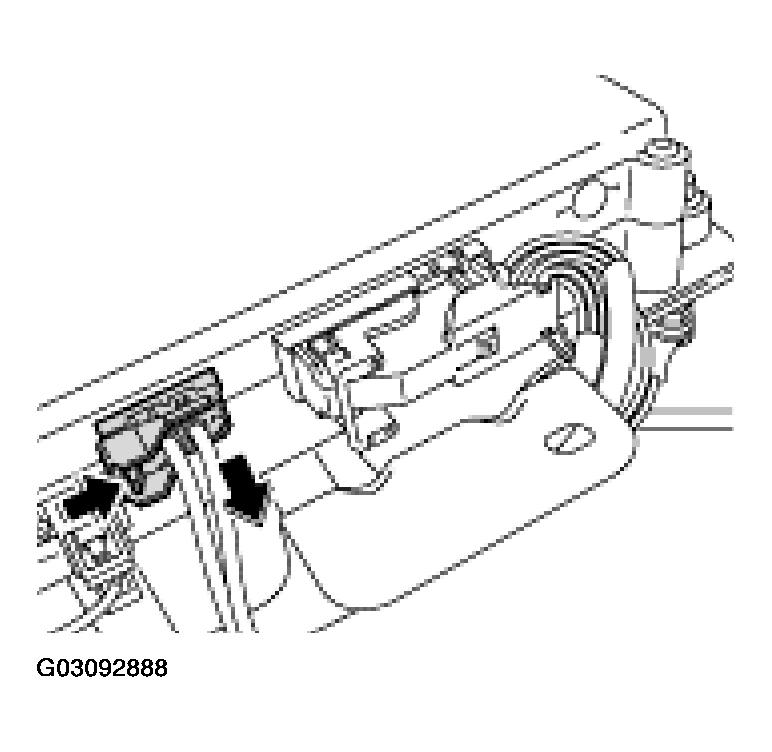

Fig 2: Disconnecting Amplifier Plug Connection
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove cover for the brake booster.

Disconnecting the joint in the front luggage compartment:

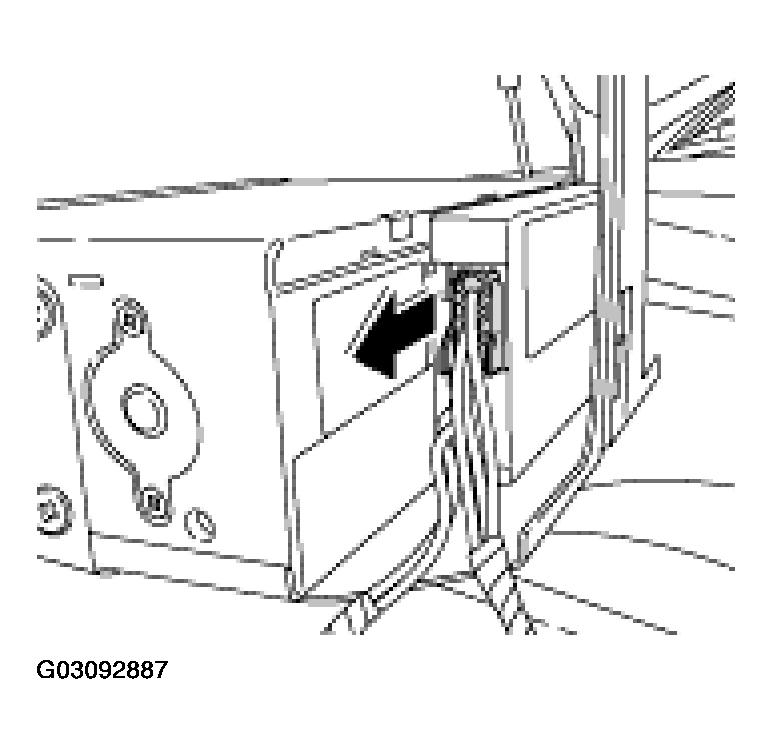

Fig 3: Disconnecting Joint In Front Luggage Compartment

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Disconnecting the plug connection on the CD changer:

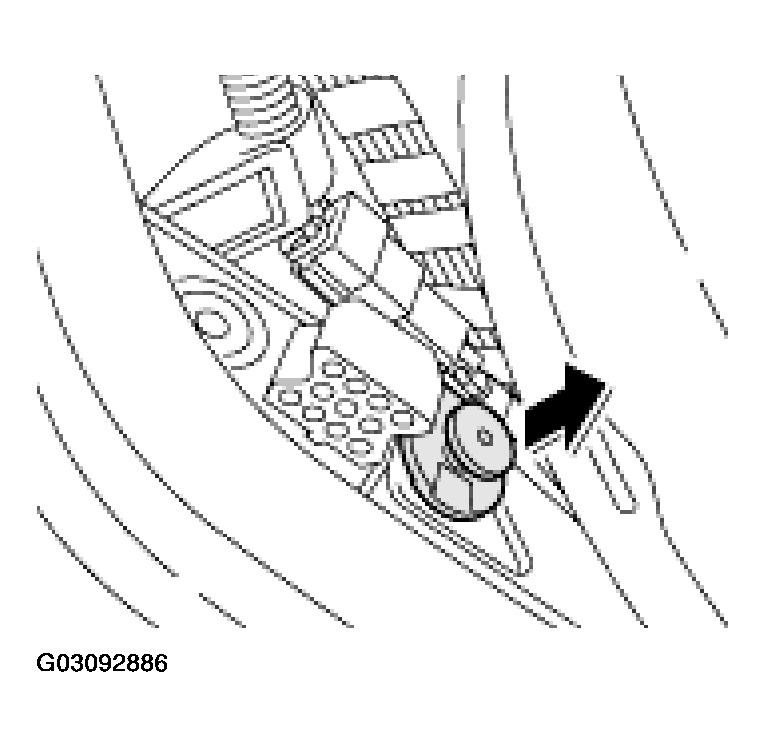

Fig 4: Disconnecting Plug Connection On CD Changer

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Remove the CD changer.

Unplugging the control unit plug connection for the telephone:

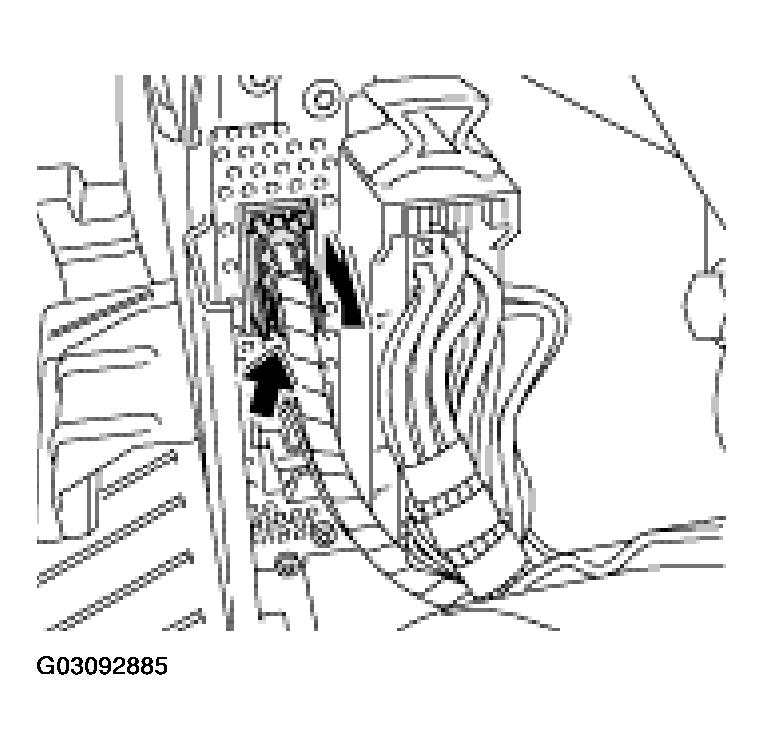

Fig 5: Unplugging Telephone Control Unit Plug Connection

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Remove passenger's seat. Refer to REMOVING AND INSTALLING FRONT SEAT, - AS OF MY 1996 .
Removing control unit holder for telephone. Refer to REMOVING AND INSTALLING CONTROL UNIT FOR THE TELEPHONE .
