Installing Optical Contacts On Connector Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Remove the dust boot right before plugging.
Check the proper condition of the contact.

Insert the optical contact -B- in the connector until it engages audibly. See Fig 1 .

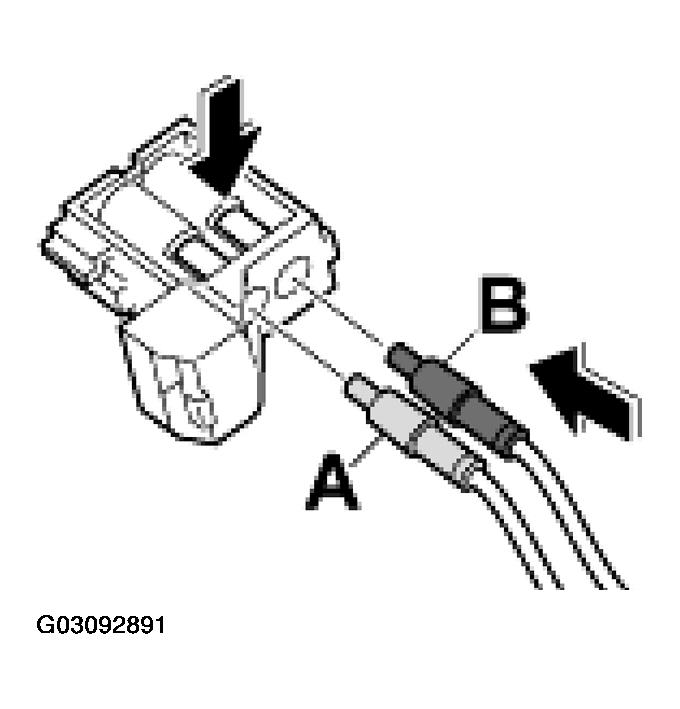

Fig 1: Inserting Optical Contact In Connector
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- -A- Optical contact, grey see Fig 1 .
- -B- Optical contact, black see Fig 1 .
Lock the secondary locking -arrow- and check the optical contacts for tightness. See Fig 2 .

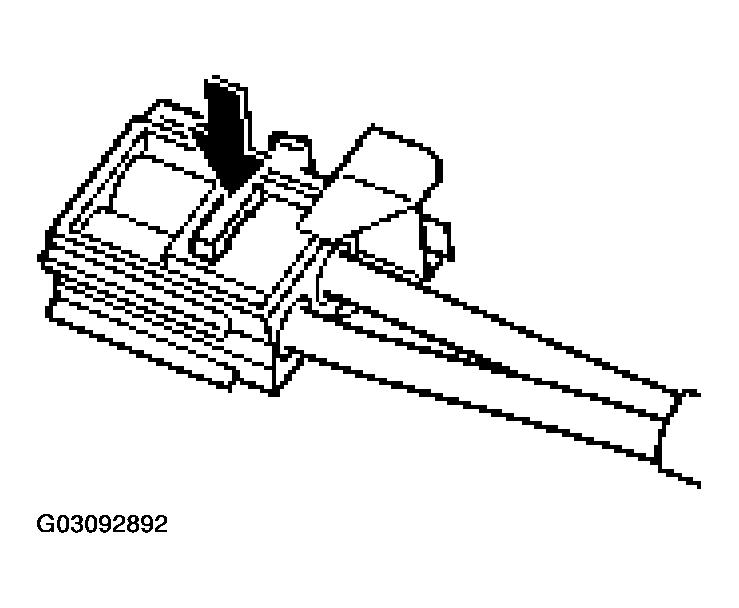

Fig 2: Locking Secondary Lock
Courtesy of PORSCHE OF NORTH AMERICA, INC.
