Dust Boot For Connector (Wiring Harness Side):
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
If a preassembled wiring harness is installed, there is a dust boot on the connector for the LWL.

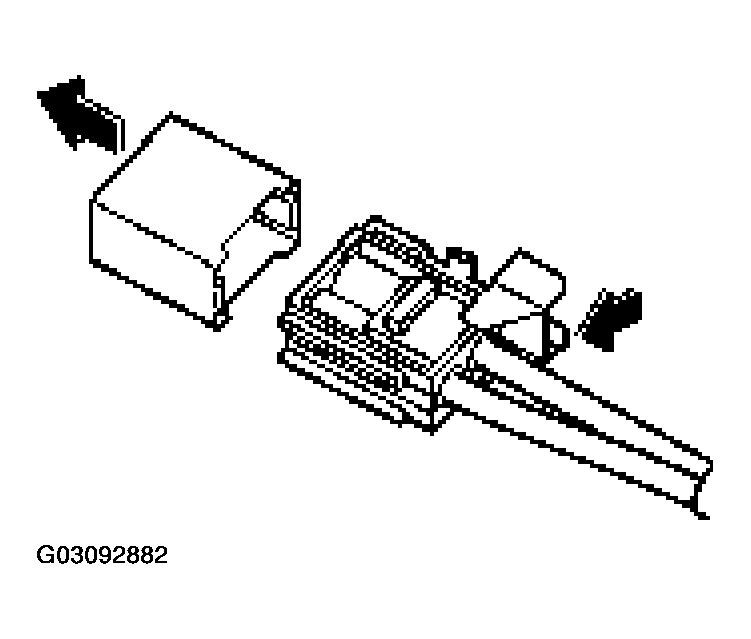

The dust boots can be removed by activating the locking mechanism -arrow- . See Fig 1 .
- When testing the LWL, the dust boot must be put back on.
- Do not touch the exposed contact surfaces while or after removing the dust boot, as otherwise the optical contact could become damaged or dirty.
