Removing And Installing The Wiper Motor: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Wiper motor in parking position. Fit the link. The installation position is identified by a 0 marking (parking position) on the console.

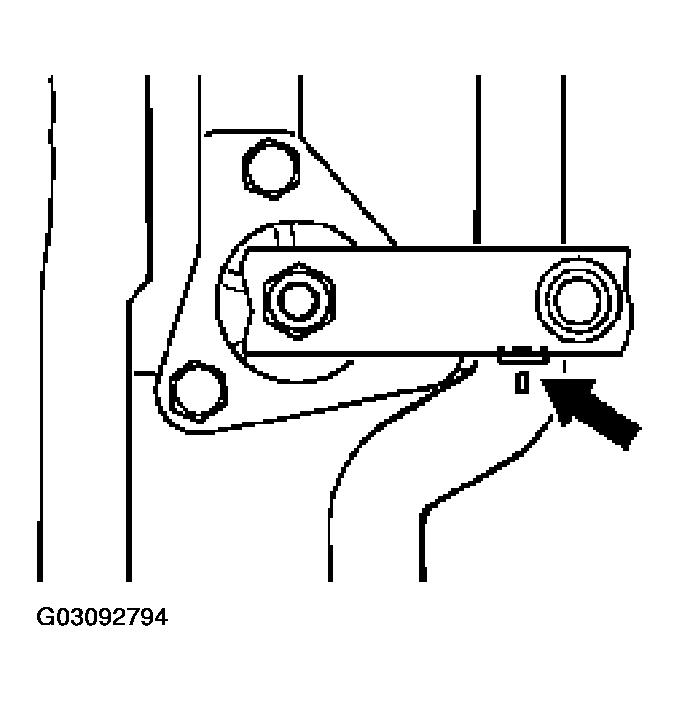

    Fig 1: Identifying Wiper Motor Parking Position
    G03092794Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Connect the battery
  3. Switch on the wiper motor and check the wiper position.
TIGHTENING TORQUES SPECIFICATIONS - WIPER MOTOR

Fastening screw, motor M6 8 Nm
Fastening nut, link M8 17 Nm
Hexagon-head bolt M6 10 Nm
