Removing And Installing The Wiper Link: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the covers over the heating/air-conditioning system, battery and fluid tank. Disconnect the battery and cover the terminal or battery.
  2. Undo the wiper arm on the left and right and remove the cowl panel over the wiper link.
  3. Remove the left dome strut. Undo the wiper link on the body (3 screws M6) and disconnect the electrical plug connection on the wiper motor.

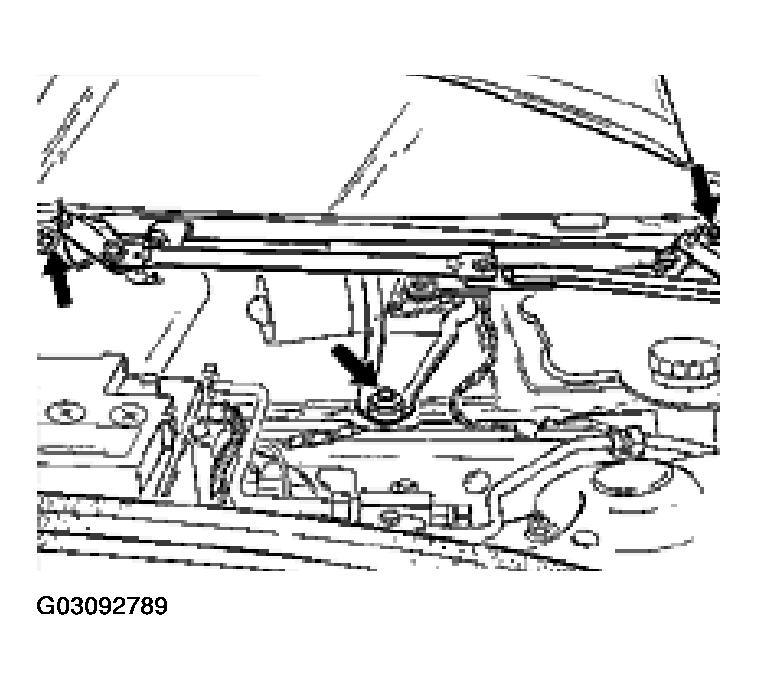

    Fig 1: Removing Left Dome Strut
    G03092789Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Carefully remove the wiper link with wiper motor to the front.
