Removing And Installing The Wiper Link: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Observe the installation sequence for the fastening screws 1...3.

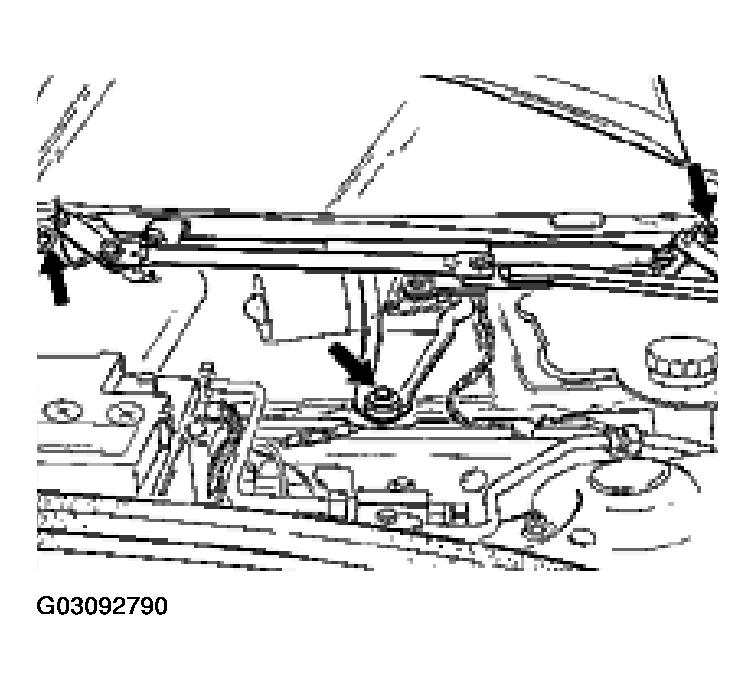

Fig 1: Installing Left Dome Strut
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Tightening torques:

TIGHTENING TORQUES SPECIFICATIONS - LEFT DOME STRUT

Wiper arm nut M	17 Nm
Hexagon-head bolts M6	10 Nm

Before installing the dome strut, the vehicle must be on its wheels.
