Removing And Installing The Wiper Blades

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The wiper blades for the driver's and passenger's side are different. The wiper blade on the driver's side is straight. On the passenger's side it is curved (see illustration Fig 1 ). This arrangement applies to left-hand drive and right-hand drive vehicles.

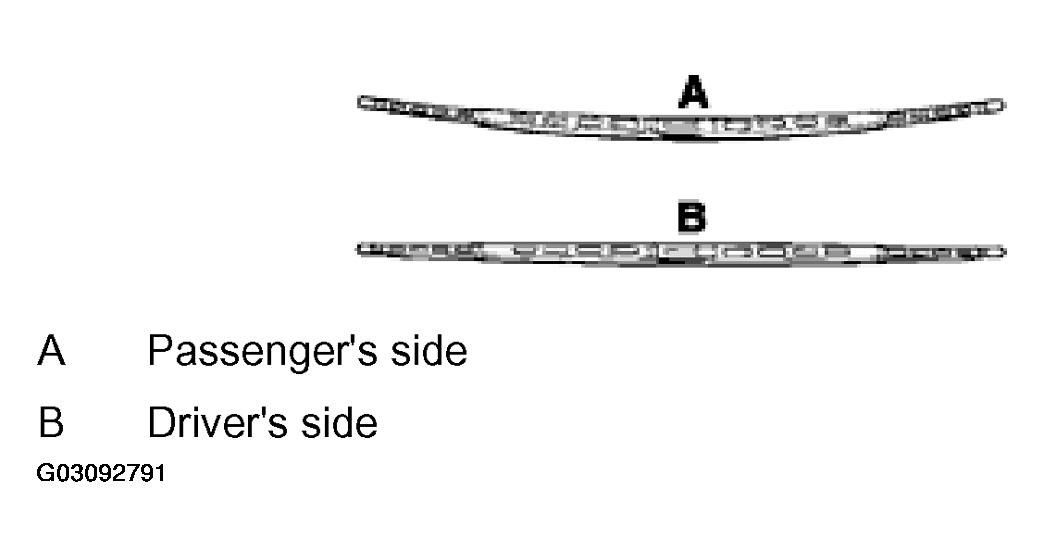

Fig 1: Identifying Wiper Blades
G03092791Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Passenger's side
  2. Driver's side
NOTE:
  • The clip installation position must be observed when installing the wiper blades for left-hand drive and right-hand drive vehicles.

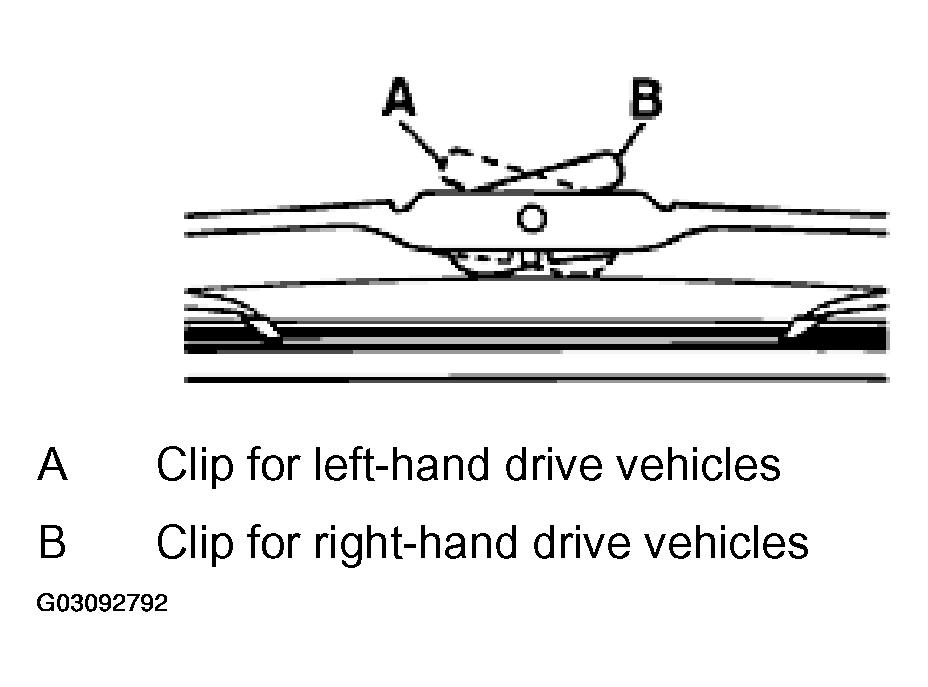

Fig 2: Identifying Wiper Blades Clip Installation Position
G03092792Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Clip for left-hand drive vehicles
  2. Clip for right-hand drive vehicles
