7 l TANK

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove left front wheel and remove the wheel housing liner.
  2. Extract water from the tank and release and pull out the filler neck.
  3. Disconnect the hose for the headlight cleaner nozzle at the headlight holder.
  4. Carefully pull off the hose for the windscreen washer system.
  5. Undo fastening screws and swing the holder inward.

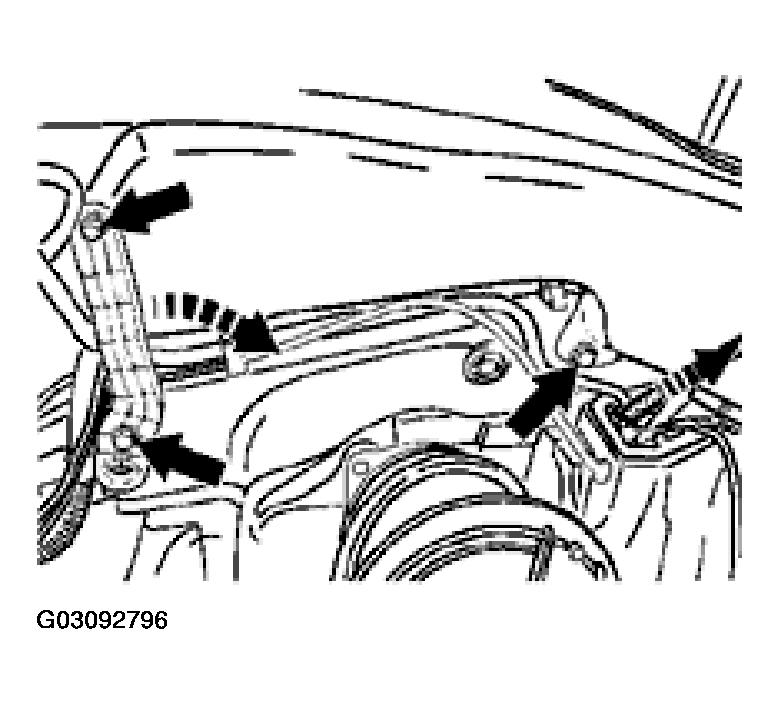

    Fig 1: Removing Windshield Washer 7 l Tank
    G03092796Courtesy of PORSCHE OF NORTH AMERICA, INC.
  6. Pull tank forward out of the holder and swivel it down at the rear.
  7. Disconnect electrical plug connections of pumps and fluid level indicator and remove the tank in downward direction.
