3 L Tank

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. The 3 L tank is not equipped with a headlight cleaning system.
  2. The tank is fastened only by one M8 x 35 hexagon-head bolt (tightening torque 20 Nm (15.0 ft.lb).

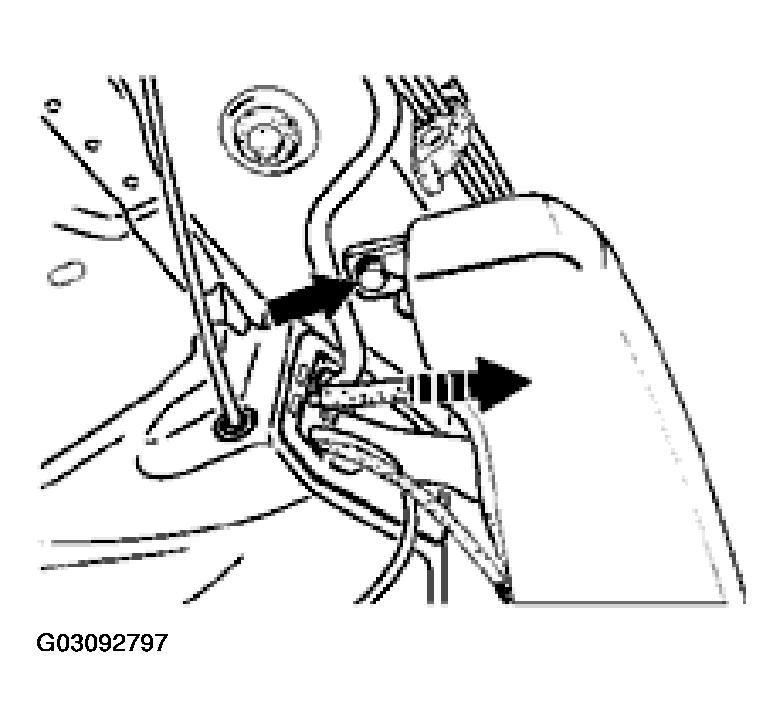

    Fig 1: Identifying Windshield Washer 3 L Tank Fastening Screws
    G03092797Courtesy of PORSCHE OF NORTH AMERICA, INC.
