Removing And Installing Spray Nozzle For Headlight Washing System: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove main headlights. Refer to REMOVING AND INSTALLING HEADLIGHTS .
  2. Remove spray nozzle for headlight cleaning system on the left side.
  3. Undo M6 hexagon nut from the spray nozzle holder.
  4. Separate plug-in coupling and take out the spray nozzle.

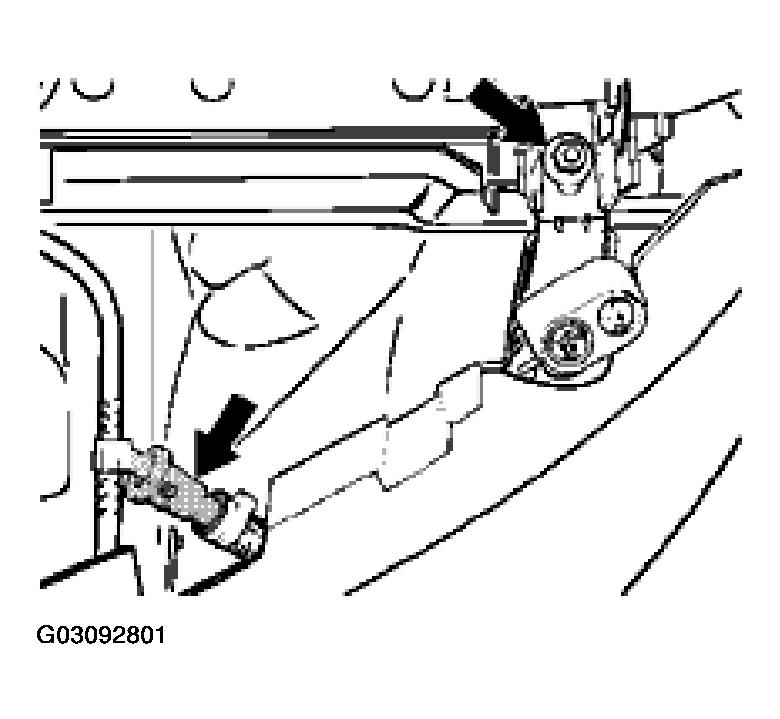

    Fig 1: Separating Plug-In Coupling For Headlight Washer
    G03092801Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Loosen hose clamp and pull hose off the spray nozzle.
    NOTE: A stuck hose can be pulled off more easily if it is heated with a hot-air gun.
  6. Remove spray nozzle for headlight cleaning system on the right side.
  7. Undo M6 hexagon nut from the spray nozzle holder and lift the spray nozzle out.

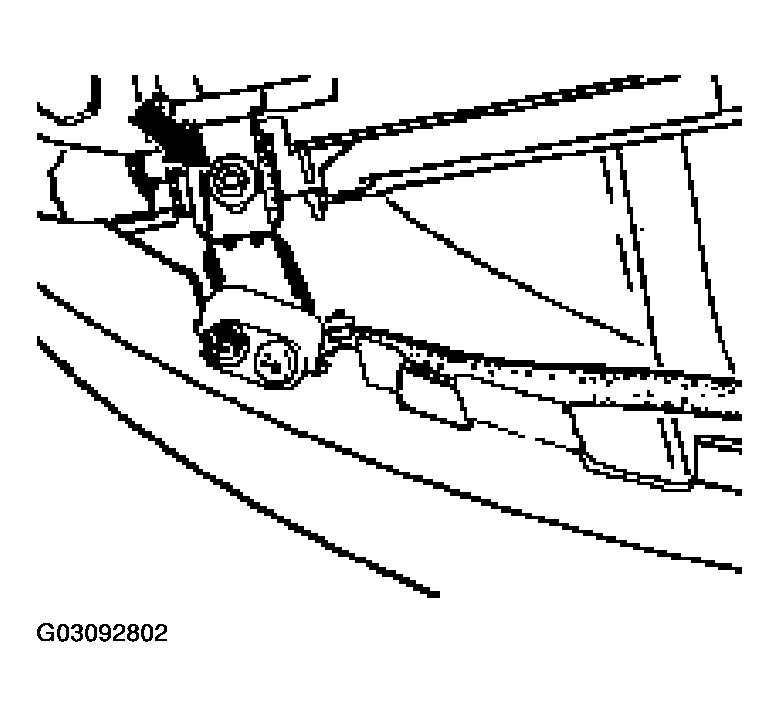

    Fig 2: Removing Headlight Washer Spray Nozzle Holder Nut
    G03092802Courtesy of PORSCHE OF NORTH AMERICA, INC.
  8. Loosen hose clamp and pull hose off the spray nozzle.
