Removing And Installing Pump For Windscreen Washer System: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tank for windscreen washer system. Refer to REMOVING AND INSTALLING TANK FOR WINDSCREEN WASHER SYSTEM  .
  2. Remove hose to the spray nozzles at the tank and turn the pump outlet to the rear.
  3. Lift pump out of the rubber sleeve.

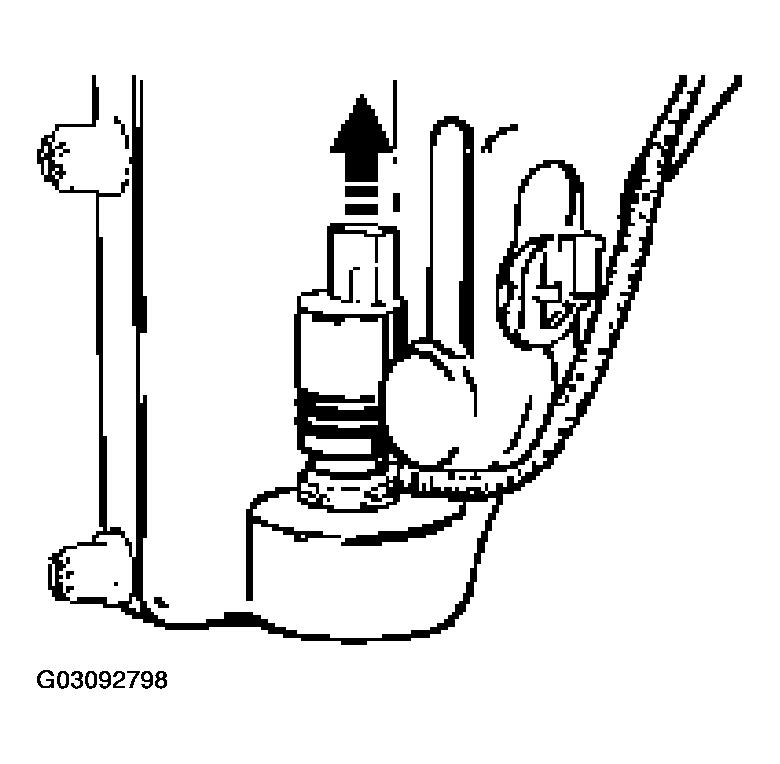

    Fig 1: Lifting Windshield Washer Pump Out Of Rubber Sleeve
    G03092798Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull hose off the pump.
NOTE: A stuck hose can be pulled off more easily if it is heated with a hot-air gun.
