Removing And Installing Fluid Level Indicator: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tank for windscreen washer system Refer to REMOVING AND INSTALLING TANK FOR WINDSCREEN WASHER SYSTEM  .
  2. Pull sensor for fluid level indicator out of the tank to the side.

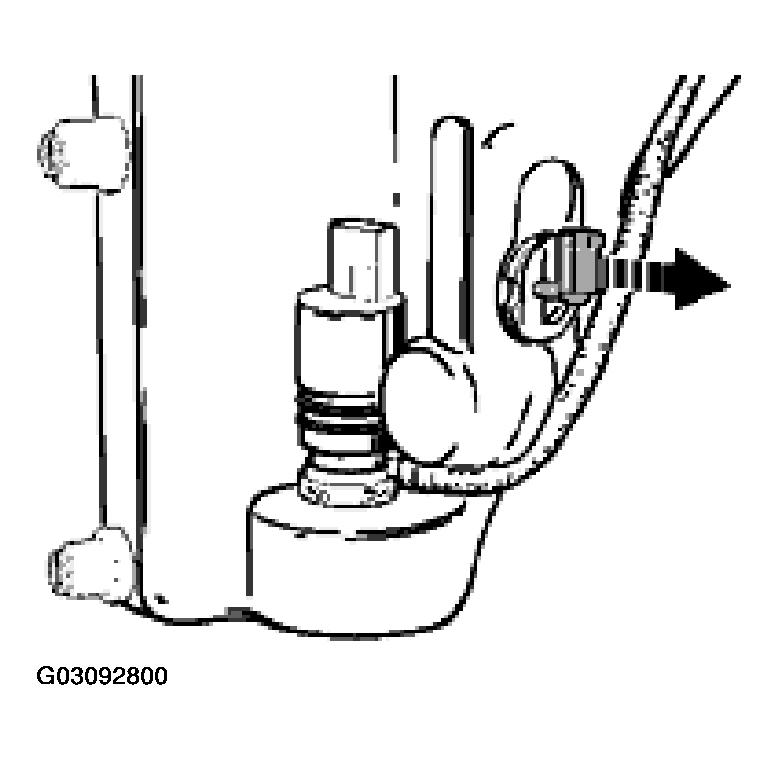

    Fig 1: Pulling Sensor For Fluid Level Indicator Out Of Tank
    G03092800Courtesy of PORSCHE OF NORTH AMERICA, INC.
