Removing Control Module For Rain Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
When working in the area of the wiper link, the ignition key must be removed.

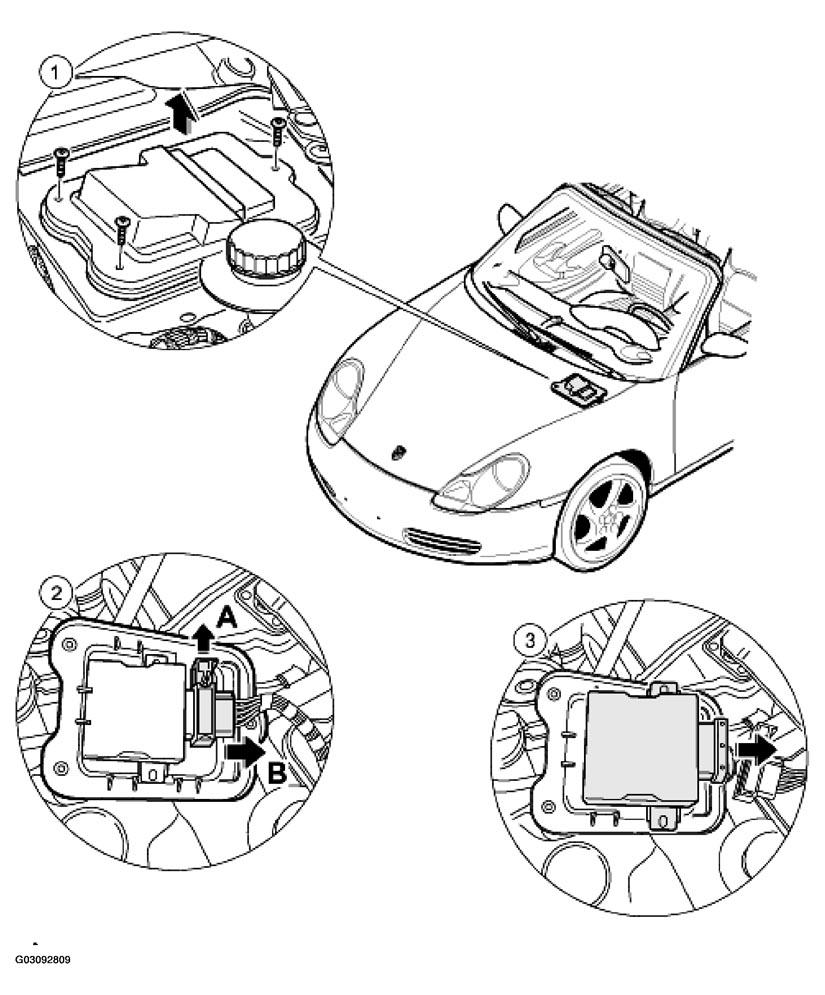

RAIN SENSOR CONTROL MODULE REMOVAL SEQUENCE
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| Remove the cover above the battery and fluid tank. | ||||
| Turn on the windscreen wiper system and when the wiper reaches a vertical position on the windscreen turn off the ignition. | ||||
| 1 | Removal of cover for rain sensor control module | Unscrew fastening screws for cover. Switch on ignition and let wiper link run in end position. | ||
| 2 | Removing plug of rain sensor control module | Remove cover with control module. -A-B (1) Open slide control of plug -A-B- (1) | ||
| 3 | Disconnect control module from the cover | Pull the control module out of the cover on the side of the electrical plug connection. | ||
|
||||
