Installing Control Module For Rain Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
When working in the area of the wiper link, the ignition key must be removed.

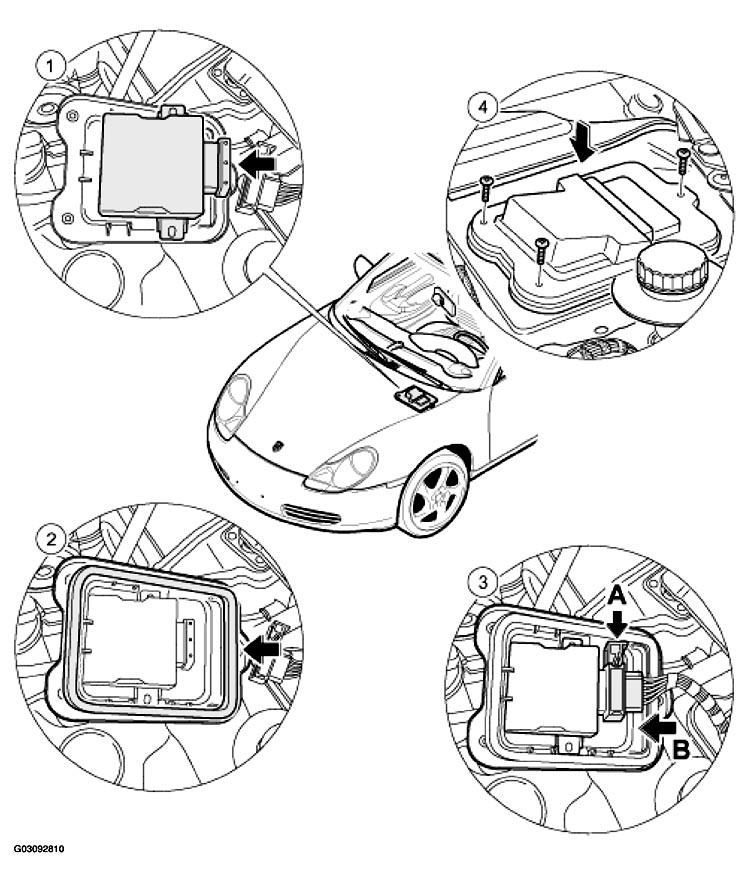

RAIN SENSOR CONTROL MODULE INSTALLATION SEQUENCE
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1 | Connecting control module with the cover | Push the control module into the cover, ensuring a secure fit. | ||
| 2 | Positioning seal of cover | Place the seal onto the cover and position correctly. If the seal is damaged, replace for safety reasons. | ||
| 3 | Connecting battery | Plug in electrical plug connection -B-A- (1) | ||
| 4 | Mount cover with control module. | Put on cover with control module. Switch ignition on and actuate windscreen wiper, windscreen wipers are vertical, switch off ignition. Tighten fastening screws. | ||
| Ignition on, windscreen wiper runs in end position, ignition off. Tightening fastening screw. | ||||
|
||||
Install cover for battery and fluid container on the left (cowl panel).
