Removing And Installing The Navigation Unit: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip the cover from the navigation unit on the left and right.
  2. Insert special tool V 160 into the recesses of the navigation unit and engage.

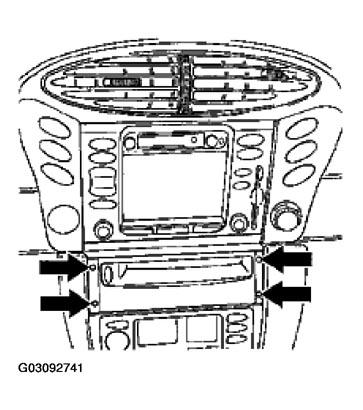

    Fig 1: Inserting Special Tool V 160 Into Recesses Of Navigation Unit
    G03092741Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Carefully push out the navigation unit rearward and disconnect plug connections.
