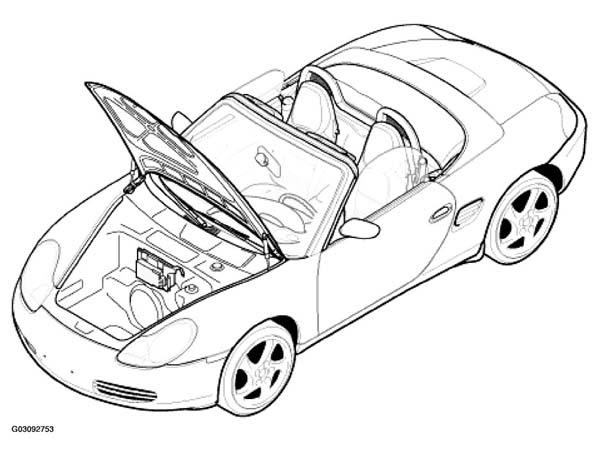

Removing Loudspeaker Amplifier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before removing the amplifier, take out the ignition key and switch off the audio system.

Fig 1: Removing Loudspeaker Amplifier

Courtesy of PORSCHE OF NORTH AMERICA, INC.

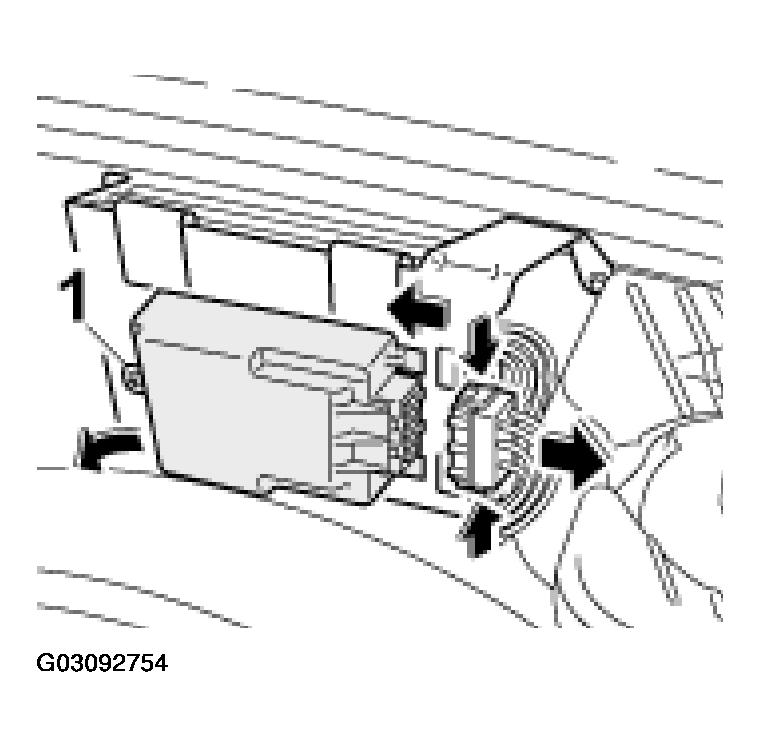

Open the luggage-compartment lid and if present, detach the additional amplifier on the clip -1- and detach the additional amplifier (in the direction of travel) to the right. See Fig 2 .

Fig 2: Detaching Additional Amplifier On Clip
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press connectors -arrow- together and pull apart. See Fig 2 . Remove additional amplifier.

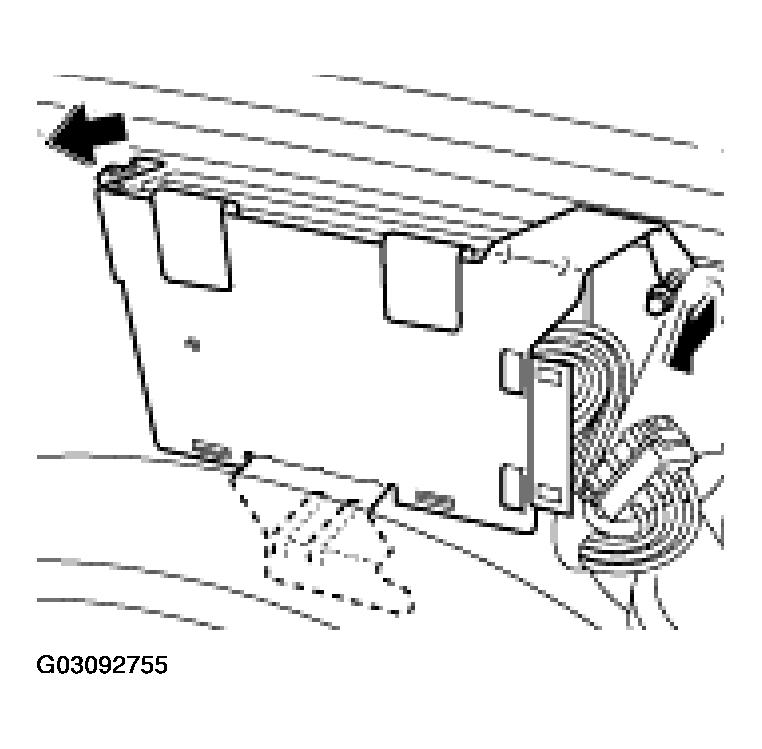

Unscrew both fastening screws from the retaining bracket.

Fig 3: Unscrewing Both Fastening Screws From Retaining Bracket
Courtesy of PORSCHE OF NORTH AMERICA, INC.

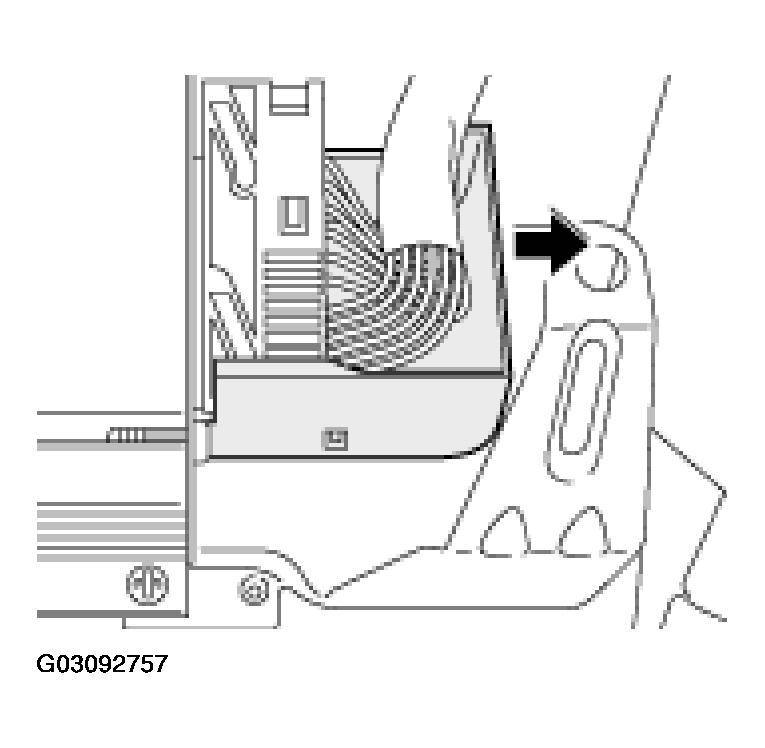

Unplug both electrical connectors -arrow- . See Fig 4 .

Fig 4: Identifying Bose Amplifier
Courtesy of PORSCHE OF NORTH AMERICA, INC.

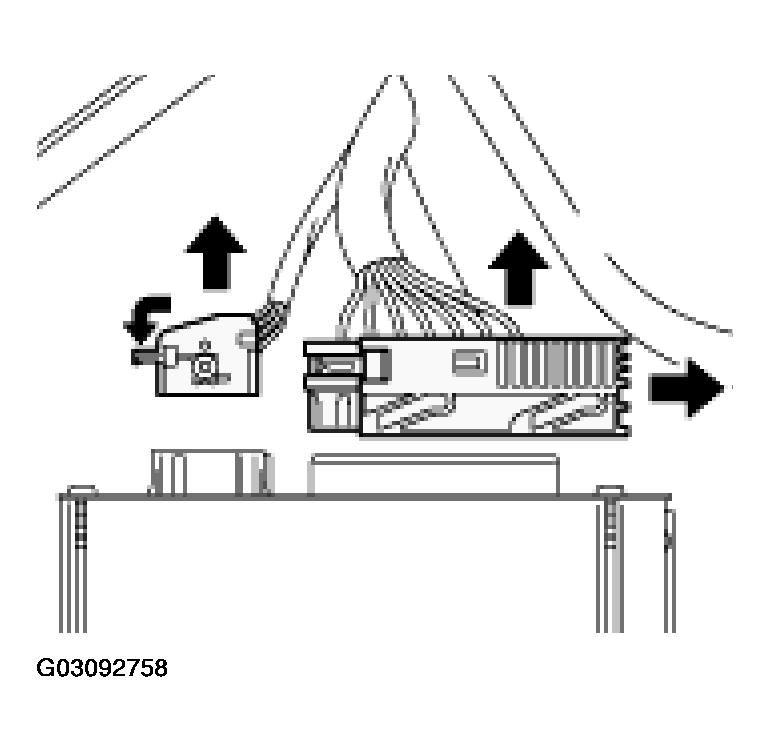

Remove the cover for the electrical connector. See Fig 5 .

Fig 5: Identifying Harman Amplifier
Courtesy of PORSCHE OF NORTH AMERICA, INC.

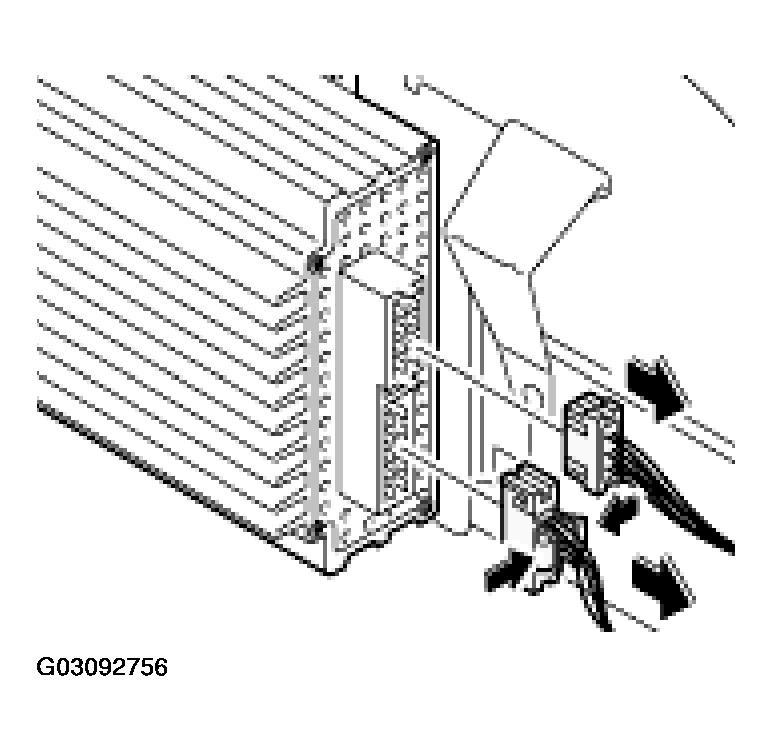

Unplug both electrical connectors -arrow- . See Fig 6 .

Fig 6: Unpluging Both Electrical Connector
Courtesy of PORSCHE OF NORTH AMERICA, INC.

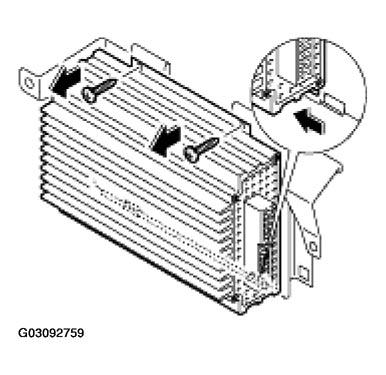

Unscrew both fastening screws and pull the amplifier from the fastening clips.

Fig 7: Pulling Amplifier From Fastening Clips
Courtesy of PORSCHE OF NORTH AMERICA, INC.
