Installing The Loudspeaker Amplifier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

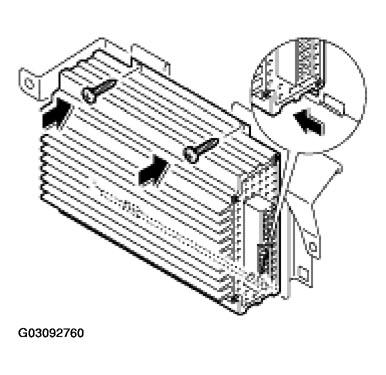

Insert the amplifier in the retaining clip and secure with the two fastening screws.

Fig 1: Installing Loudspeaker Amplifier
Courtesy of PORSCHE OF NORTH AMERICA, INC.

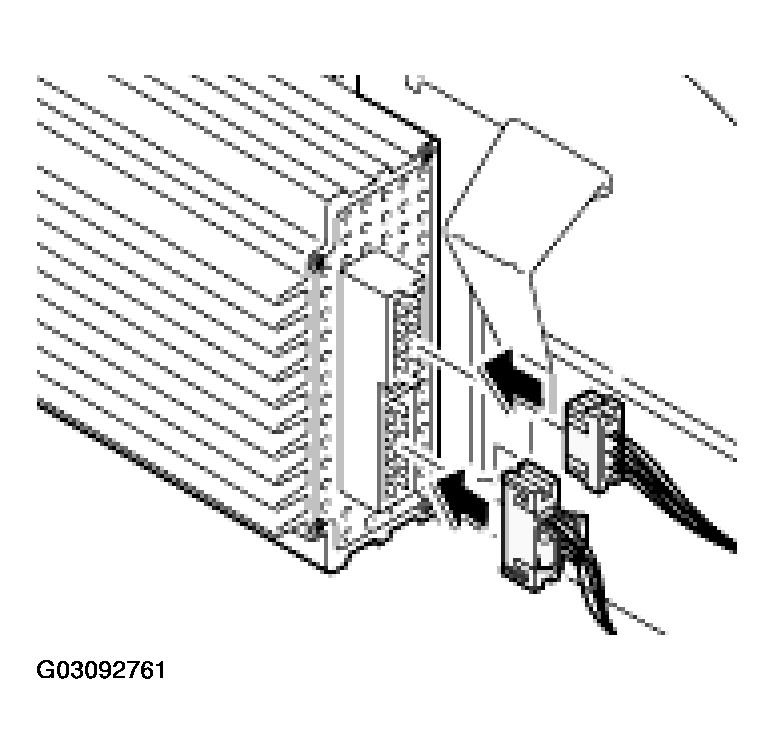

Insert both connectors until they perceptibly engage.

Fig 2: Inserting Both Connectors (Bose)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

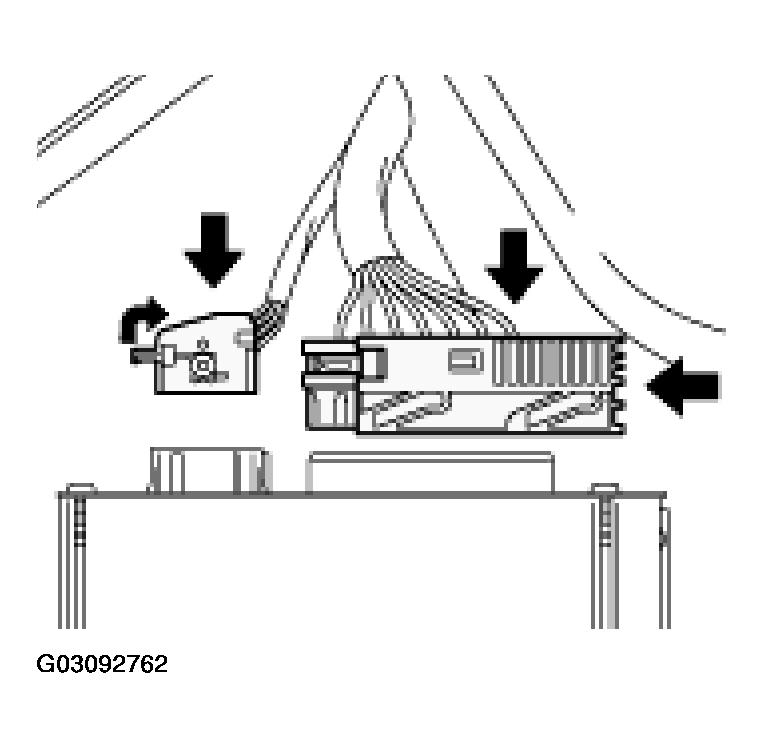

Fig 3: Inserting Both Connectors (Harman)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

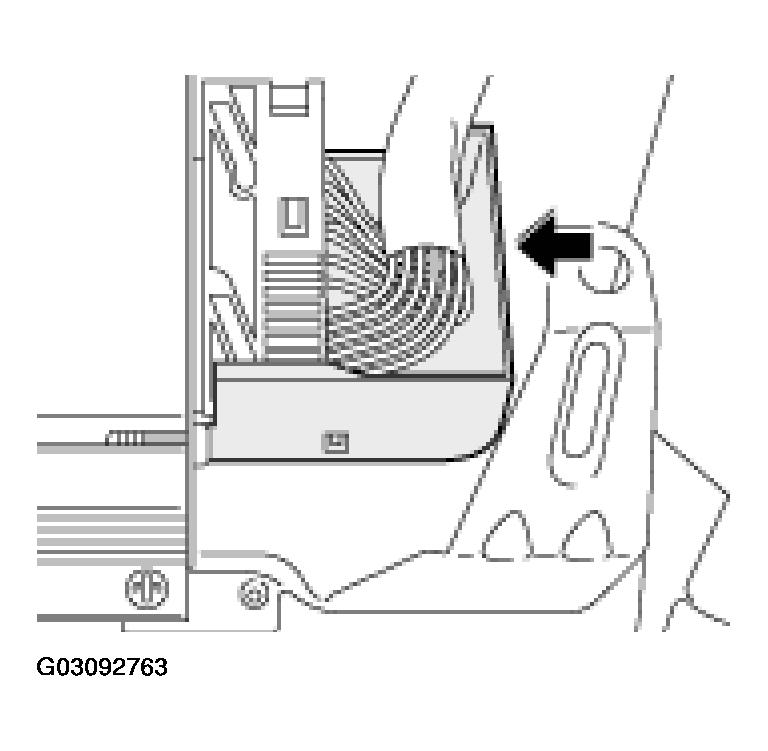

Put on the cover on the Harman amplifier.

Fig 4: Identifying Cover On Harman Amplifier
Courtesy of PORSCHE OF NORTH AMERICA, INC.

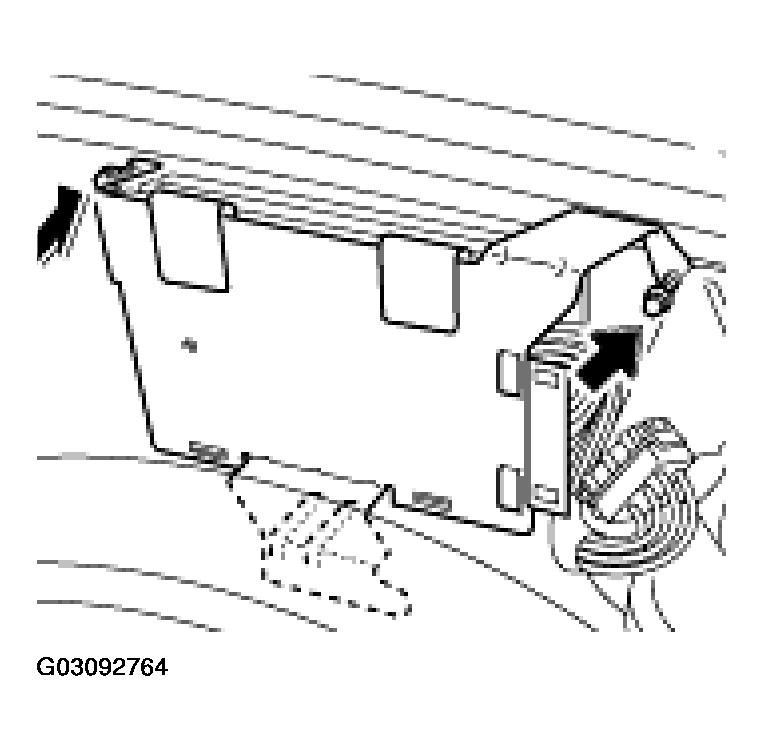

Screw on the retaining bracket with the amplifier and both fastening screws to the body.

Fig 5: Retaining Bracket With Amplifier And Both Fastening Screws To Body
Courtesy of PORSCHE OF NORTH AMERICA, INC.

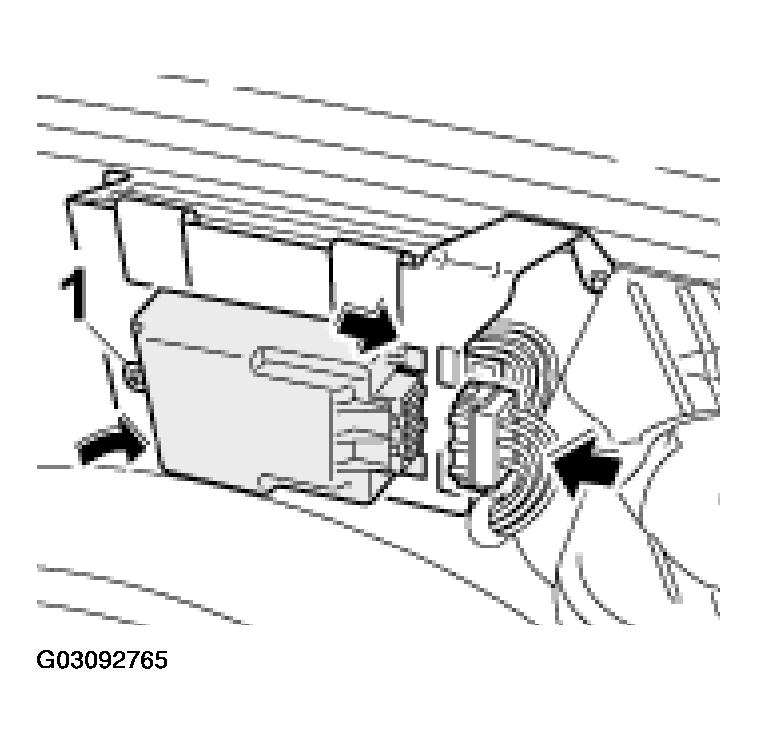

Plug in the connector of the additional amplifier and attach the additional amplifier on the retaining bracket and secure using the clip -1- . See Fig 6 .

Fig 6: Attaching Additional Amplifier On Retaining Bracket And Secure Using Clip
Courtesy of PORSCHE OF NORTH AMERICA, INC.
