Installing Car Radio

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

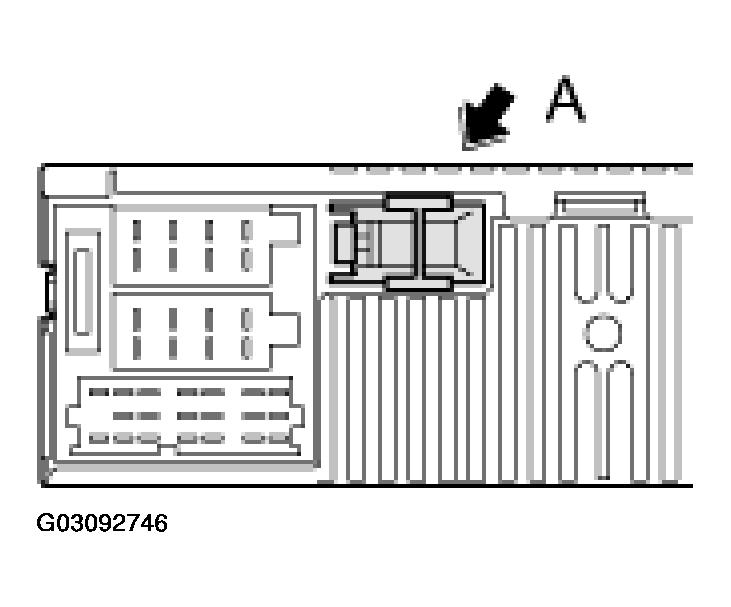

  1. Before the new  radio is installed, unlock and disconnect the protective plug -A-  for the optical waveguide. See Fig 1 .
    Fig 1: Installing Car Radio
    G03092746Courtesy of PORSCHE OF NORTH AMERICA, INC.

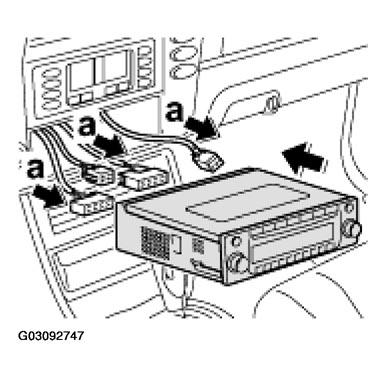

  2. Press in electrical plug and optical waveguide plug on car radio until the plugs are felt to engage -a-.  . See Fig 2 .
    Fig 2: Pressing In Electrical Plug And Optical Waveguide Plug On Car Radio
    G03092747Courtesy of PORSCHE OF NORTH AMERICA, INC.
    NOTE:
    • Before sliding the car radio into the installation slot, make sure that the electrical leads are not trapped by the car radio or damaged.
  3. Push the car radio into the installation slot until the locks engage on the radio housing.
