Removing Subwoofer

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Material damage.
  • The radio must be switched off before the subwoofer is unplugged.
  • Remove ignition key.

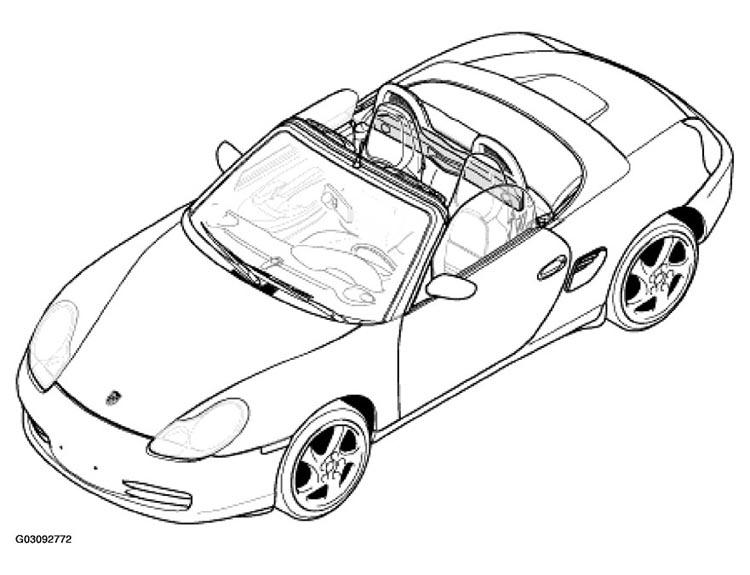

Fig 1: Locating Subwoofer
G03092772Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Open convertible top approx. 50%.
  2. Open the plugs on the left and right by turning in the -B-  direction. See Fig 2 .

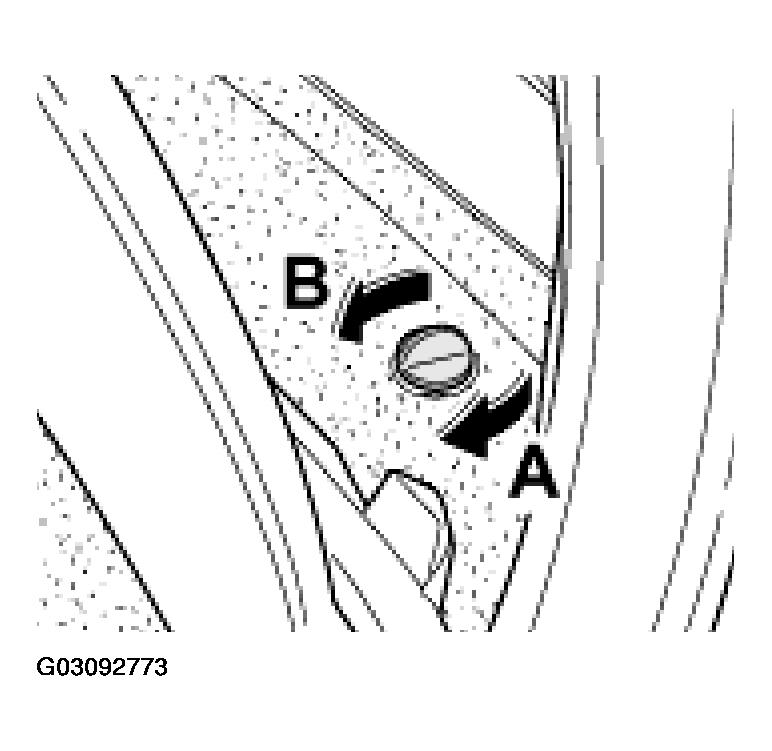

    Fig 2: Opening Plugs On The Left And Right
    G03092773Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Open convertible top approx. 75%.
  4. Unplug the electrical plug connection on the right side beneath the convertible top linkage. Press connectors -arrow-  together and pull apart.

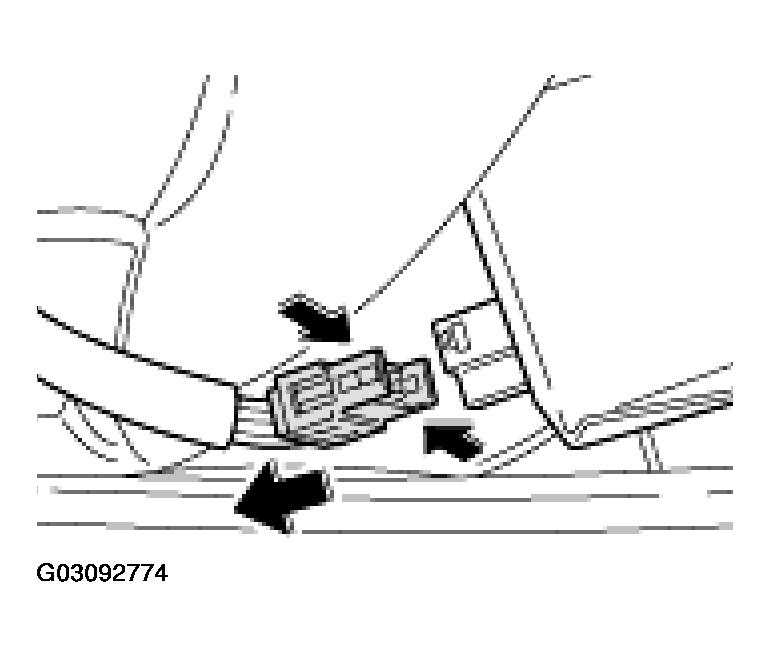

    Fig 3: Unpluging Electrical Plug Connection On The Right Side Beneath The Convertible Top Linkage
    G03092774Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Detach tension cables from the tension bow.

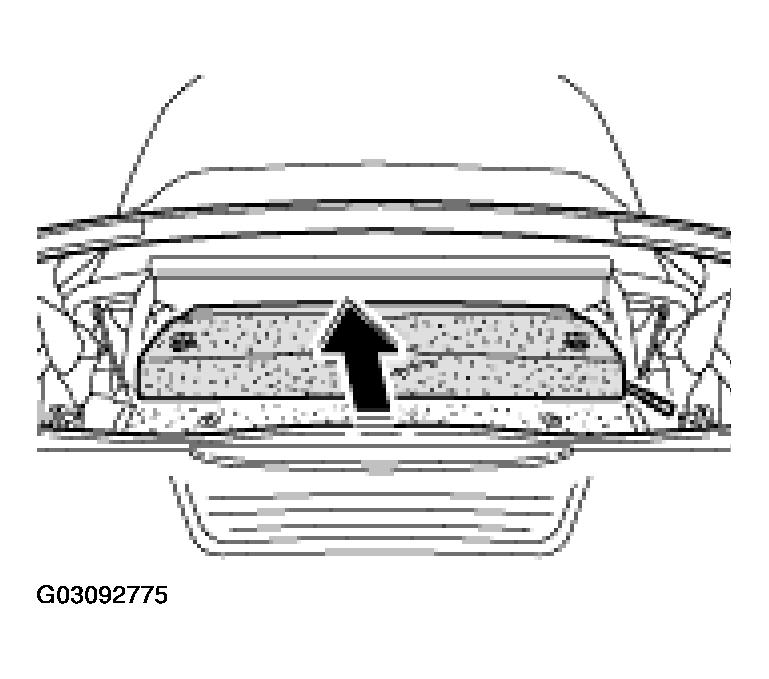

    Fig 4: Detaching Tension Cables From Tension Bow
    G03092775Courtesy of PORSCHE OF NORTH AMERICA, INC.
  6. Close the convertible top to approx. 80% and bring convertible top to service position.
  7. Pull the subwoofer out to the rear.
