Installing Subwoofer

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the subwoofer from behind on the engine compartment lid.

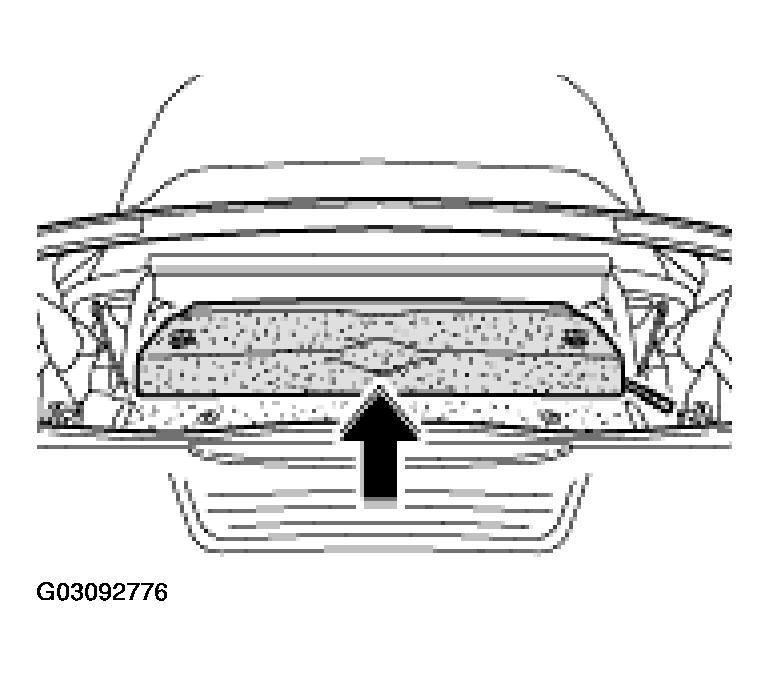

    Fig 1: Positioning Subwoofer From Behind On Engine Compartment Lid
    G03092776Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Engage the tension cables from the tension bow and engage the cloth covering from the convertible top.
  3. Open convertible top to approx. 50%.
    Fig 2: Engaging Tension Cables From Tension Bow And Engage Cloth Covering From Convertible Top
    G03092777Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Insert the plug connection from the subwoofer until the connector audibly engages.
  5. Screw down the plugs on the left and right -A-  . See Fig 3 .

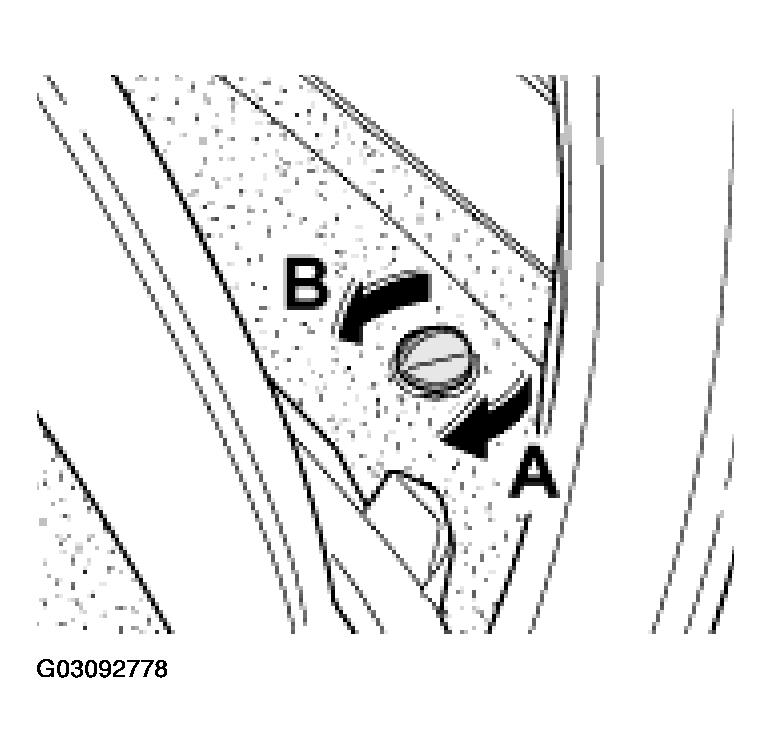

    Fig 3: Screwing Down The Plugs On The Left And Right
    G03092778Courtesy of PORSCHE OF NORTH AMERICA, INC.
  6. Check subwoofer for tightness and function. Close convertible top.
