Removing And Installing Sensor For Park Assistant: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Take off rear spoiler Pull off electrical plug connection. Press together retaining spring at top and pull off.

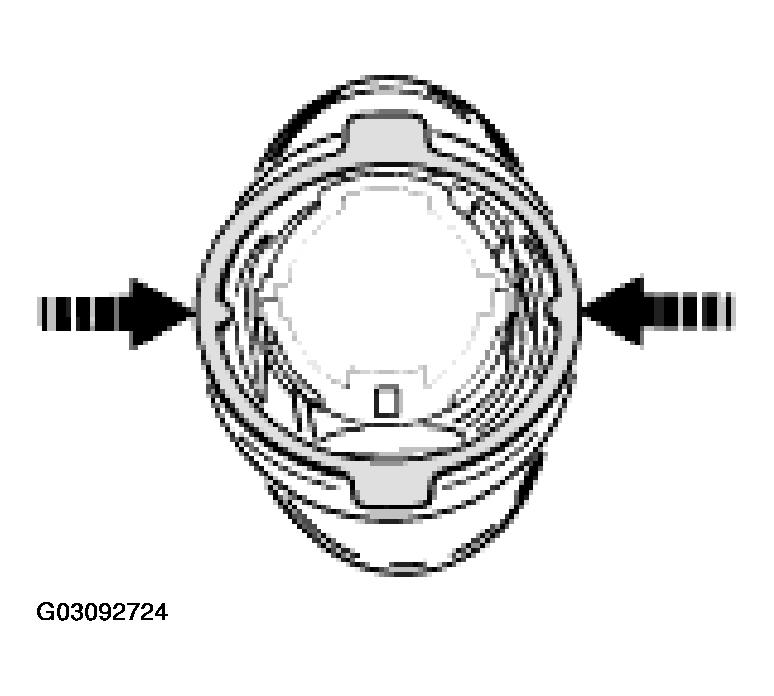

    Fig 1: Pulling Off Electrical Plug Connection From Park Assistant Sensor
    G03092724Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Slightly bend up the holding peg on the sensor housing and push out the sensor.

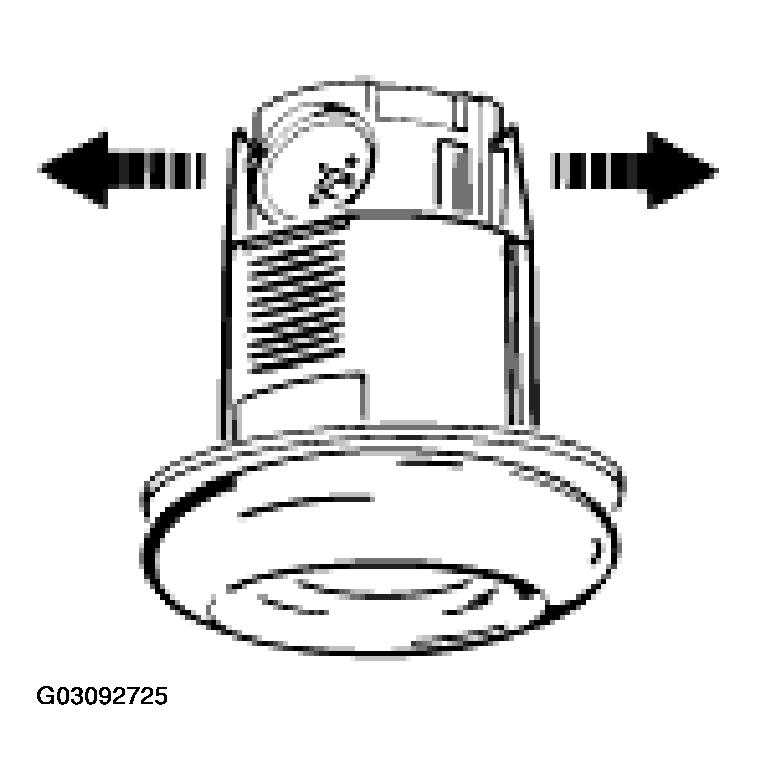

    Fig 2: Holding Peg On Park Assistant Sensor Housing And Pushing Out Sensor
    G03092725Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. The washer remains over the sensor housing on the rear spoiler. Remove isolating ring from the sensor.
