Removing And Installing Sensor For Park Assistant: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Four sensors for the ParkAssistant are installed in the rear spoiler. The rear spoiler must be taken off in order to remove a defective sensor. The sensors are arranged in the order: outer left, inner left, inner right and outer right.

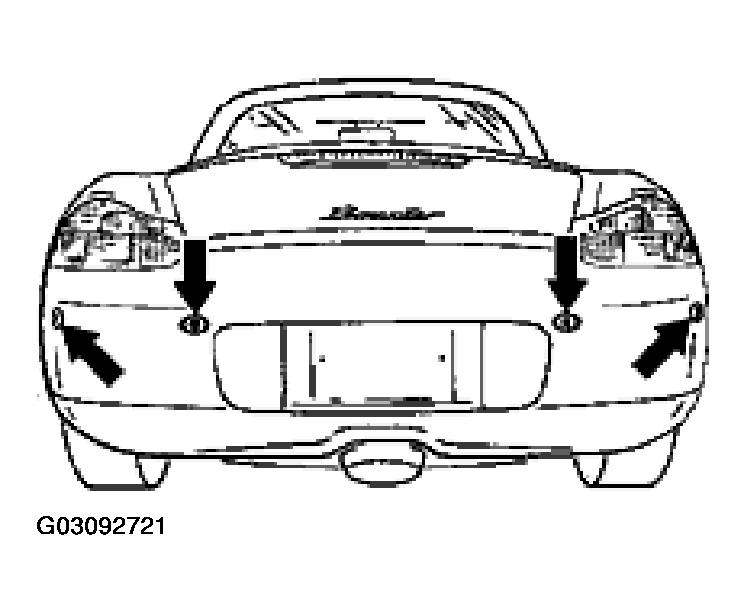

Fig 1: Locating Sensor For Park Assistant In Rear Bumper

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The sensor with holder in the rear spoiler consists of six parts.

Rosette
Washer
Sensor housing
Isolating ring
Sensor
Retaining spring

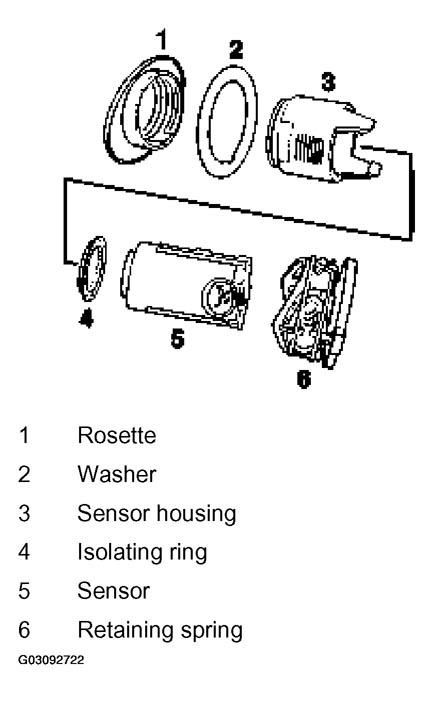

Fig 2: Identifying Park Assistant Sensor Holder Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The washer (No. 2, Figure 410 - 97) and retaining spring (No. 6) have been omitted from the inner left and inner right sensors. The holding spring with new support on the rear spoiler must be replaced for these two parts. See Fig 3 .

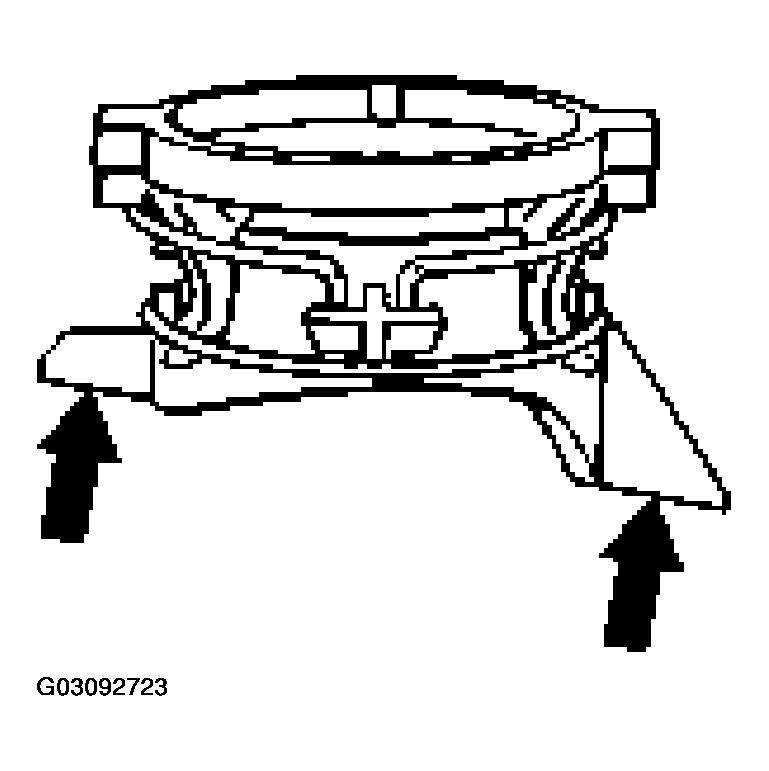

Fig 3: Identifying Park Assistant Sensor Support

Courtesy of PORSCHE OF NORTH AMERICA, INC.
