Removing And Installing GPS Antenna: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip cover from behind and take out.

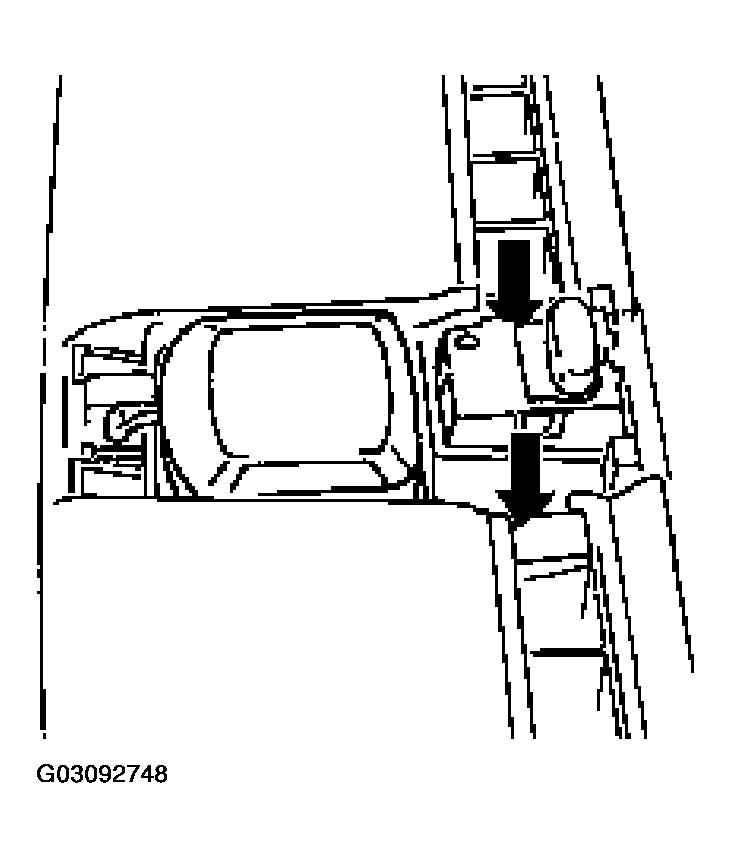

    Fig 1: Unclipping Cover From Behind
    G03092748Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Undo both Torx T20 fastening screws with an angled screwdriver. Caution: Fastening screws could fall out.
  3. Remove housing with GPS antenna, disconnect electrical plug connection on the bottom, and remove GPS antenna (magnet).
