Removing Display And Operator Control Unit (Pcm)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip the -switch covers-  from below and let them dangle from the electric leads.

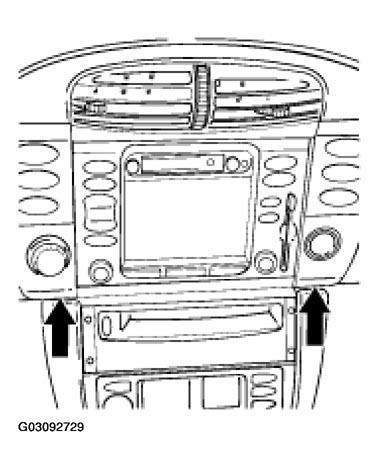

    Fig 1: Removing Display And Operator Control Unit (PCM)
    G03092729Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Press together both spring clamps on the display and operator control unit and carefully pull out.

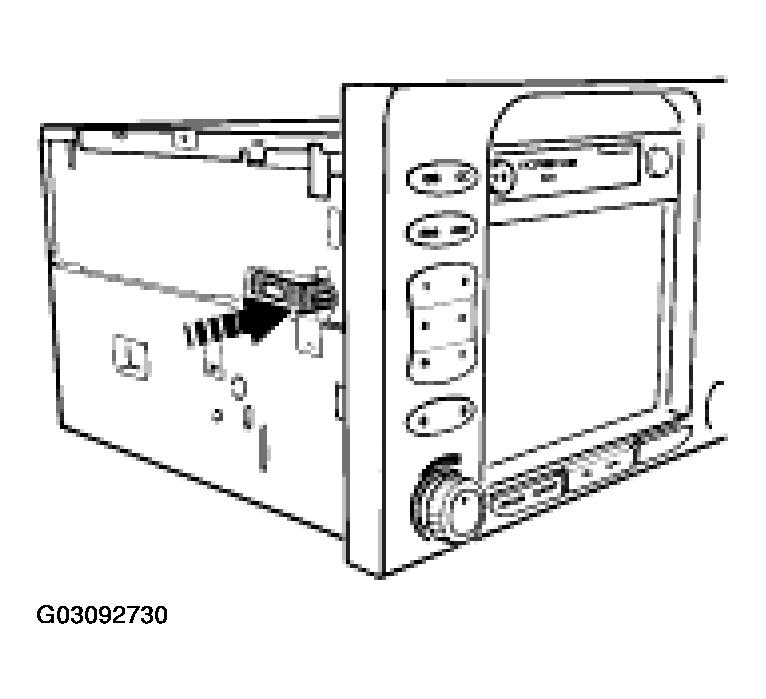

    Fig 2: Locating Spring Clamps On The Display And Operator Control Unit
    G03092730Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Disconnect electrical plug connections from the display and operator control unit.
