Removing Control Unit For Telephone

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew the 4 fastening screws from the holder.

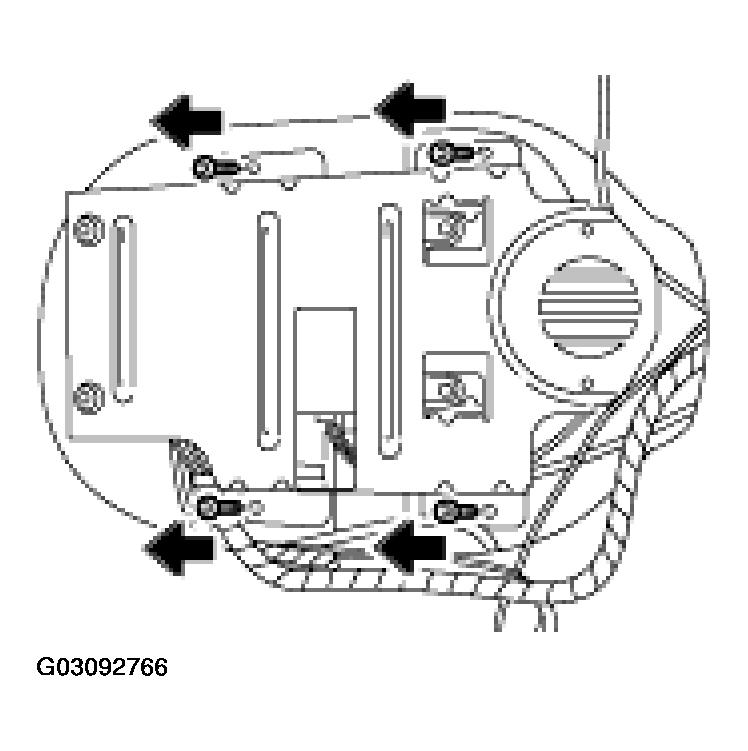

    Fig 1: Removing Control Unit For Telephone
    G03092766Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Unscrew the two fastening screws on the holder and remove the control unit from the holder.

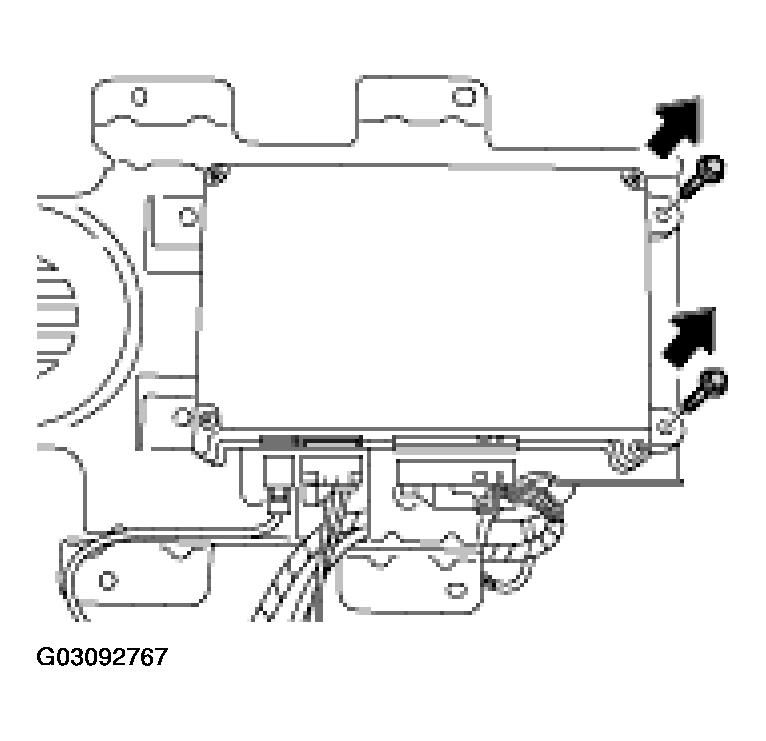

    Fig 2: Removing Telephone Control Unit From Holder
    G03092767Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Disconnect the electrical plug connections.

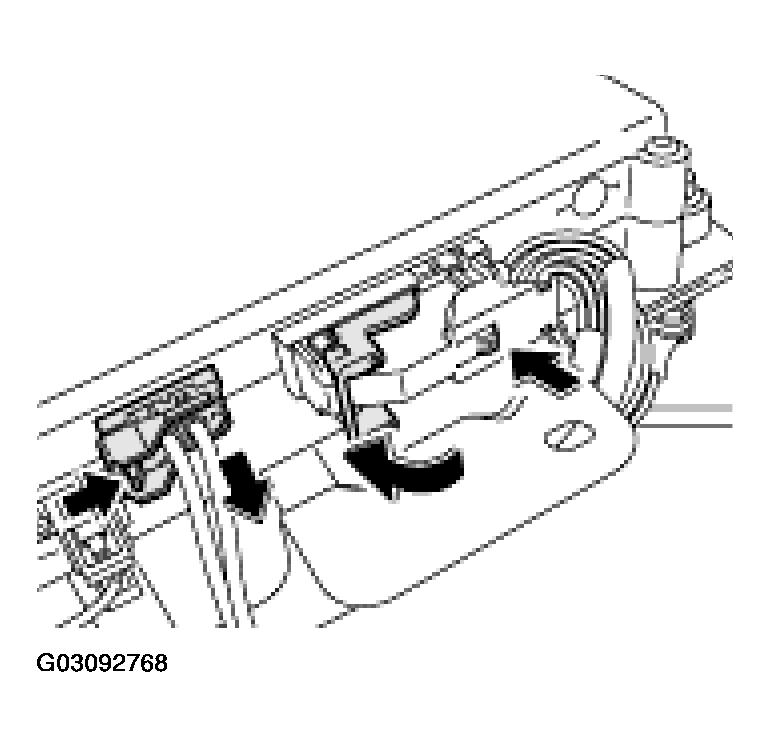

    Fig 3: Disconnecting Electrical Plug Connections
    G03092768Courtesy of PORSCHE OF NORTH AMERICA, INC.
