Removing The Antenna Amplifier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unplug the antenna plug for the windscreen -1-  and -2-  . See Fig 1 .

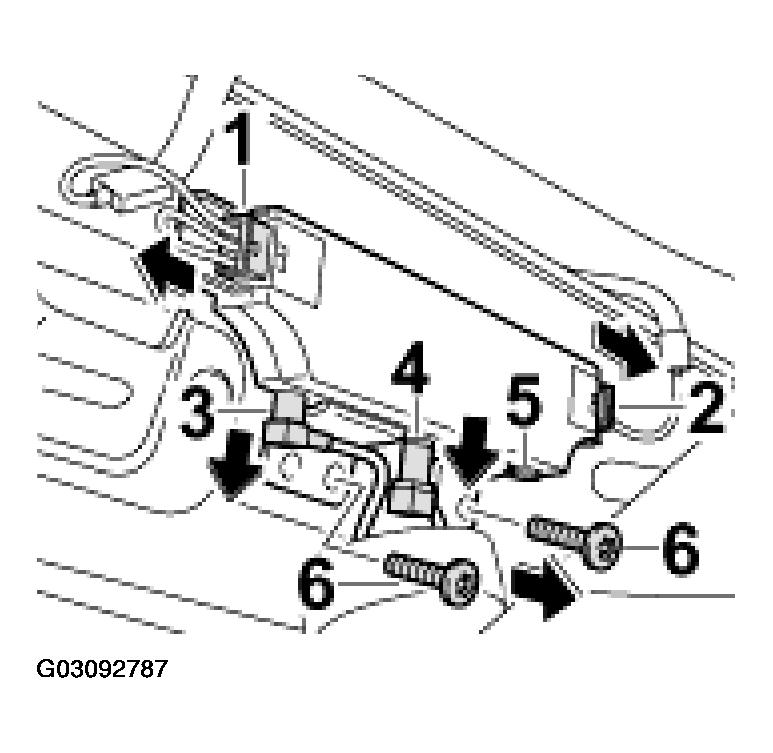

    Fig 1: Unplugging Antenna Plug For Windscreen
    G03092787Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Unplug the plug connections for the antenna control unit -3, 4-  on the left side, -3, 4, 5-  on the right side. See Fig 1 .
  3. Unscrew both fastening screws -6-  . See Fig 1 .
