Removing Control Unit For The Antenna

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

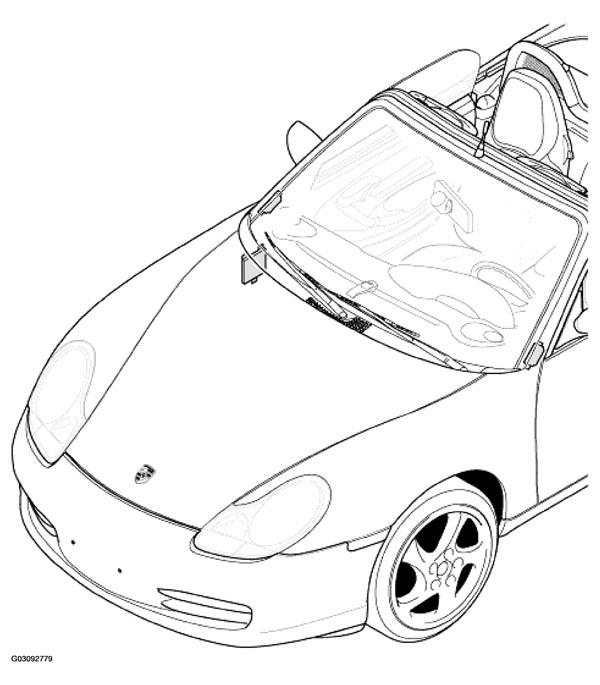

Fig 1: Locating Control Unit For Antenna

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Remove the right cover under the instrument panel. Refer to REMOVING AND INSTALLING DOOR TRIM PANEL .
Remove the ignition key and switch off the radio.

Lift out the control unit on the right side out of the clip and pull to the right out of the holder.

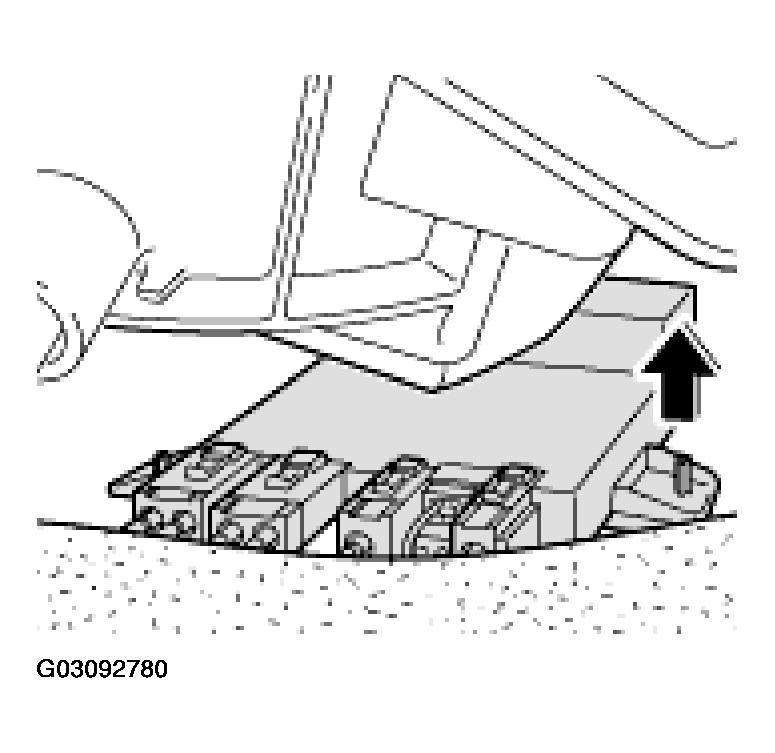

Fig 2: Lifting Out The Antenna Control Unit On The Right Side
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Swivel the control unit in the direction of the arrow -A- and carefully pull it over the interior carpet -B- - observe the wire length. See Fig 3 .

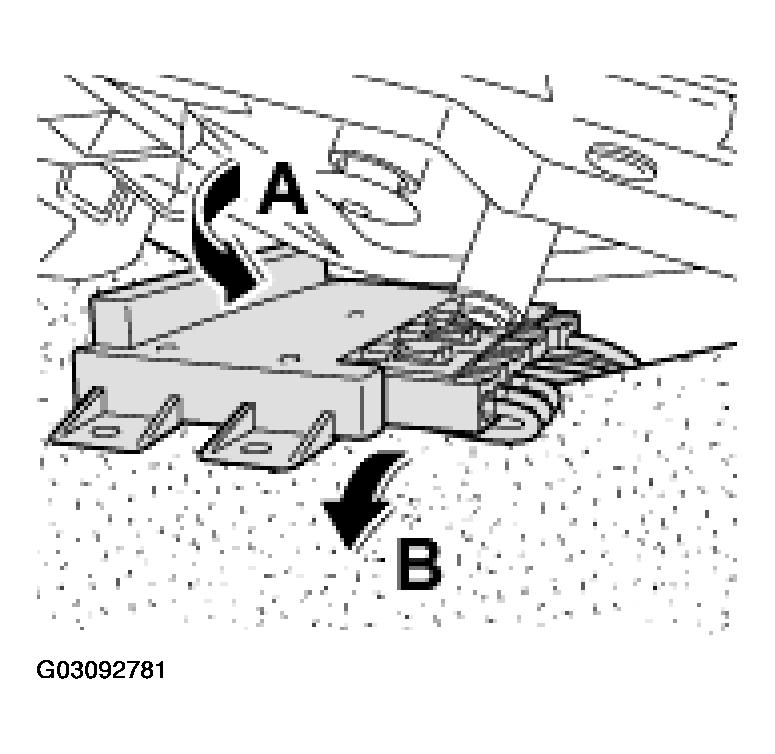

Fig 3: Swivelling Antenna Control Unit In Direction Of Arrow
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disconnect the electrical connectors in turn.

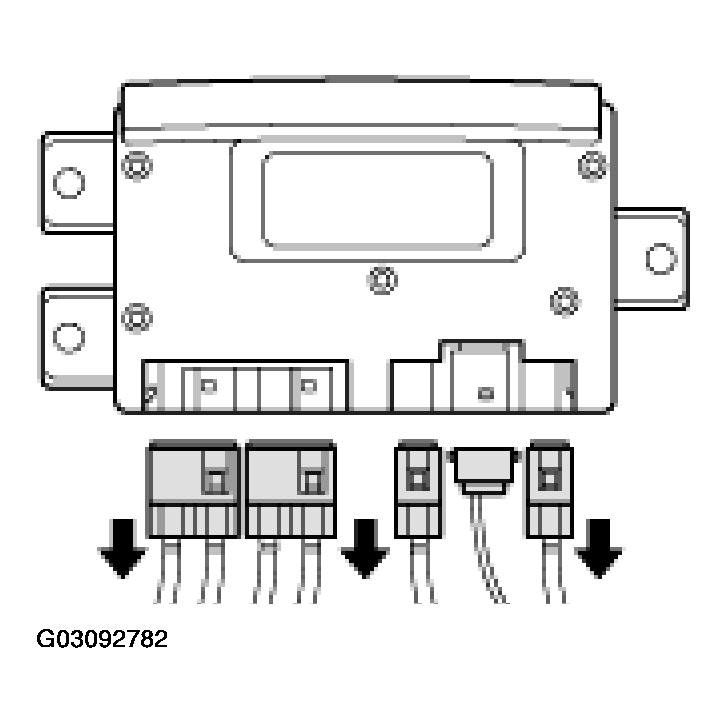

Fig 4: Disconnecting Antenna Control Unit Electrical Connectors
Courtesy of PORSCHE OF NORTH AMERICA, INC.
