Installing The Control Module For The Antenna

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connectors in turn.

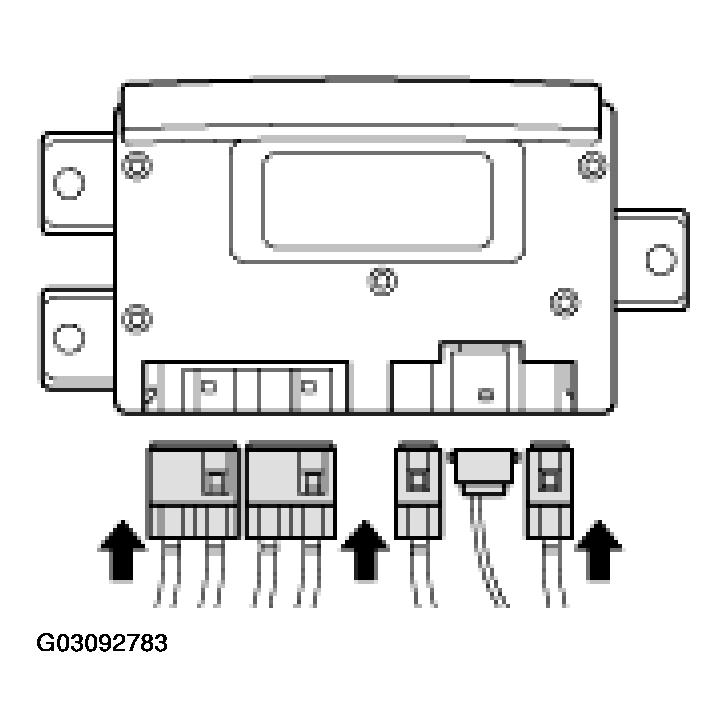

Fig 1: Connecting Antenna Control Unit Electrical Connectors In Turn
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Push the control unit carefully over the interior carpet -B- and position it in the holder -A- . See Fig 2 .

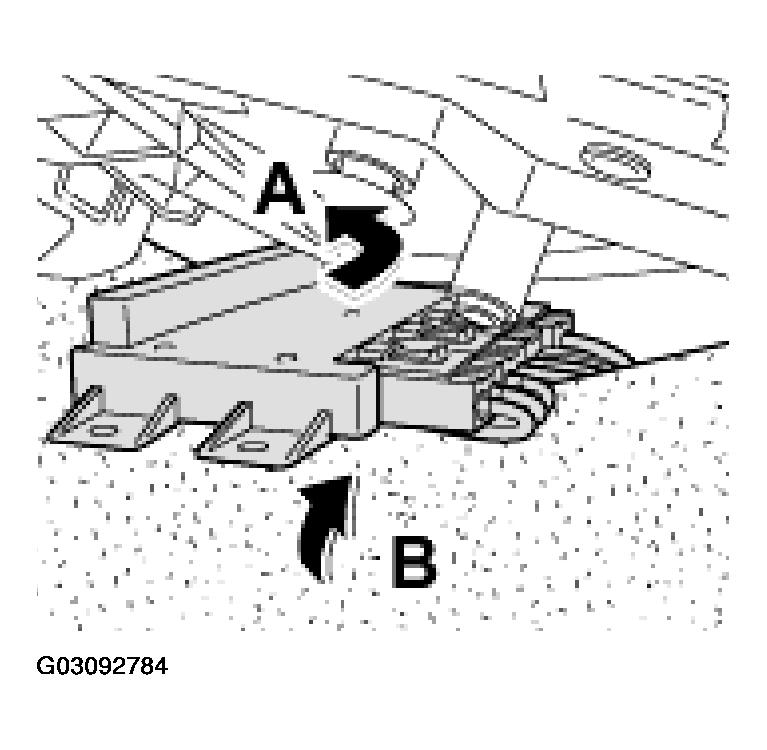

Fig 2: Pushing Antenna Control Unit Control Unit Carefully Over Interior Carpet
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fasten the control unit with the clip to the holder.

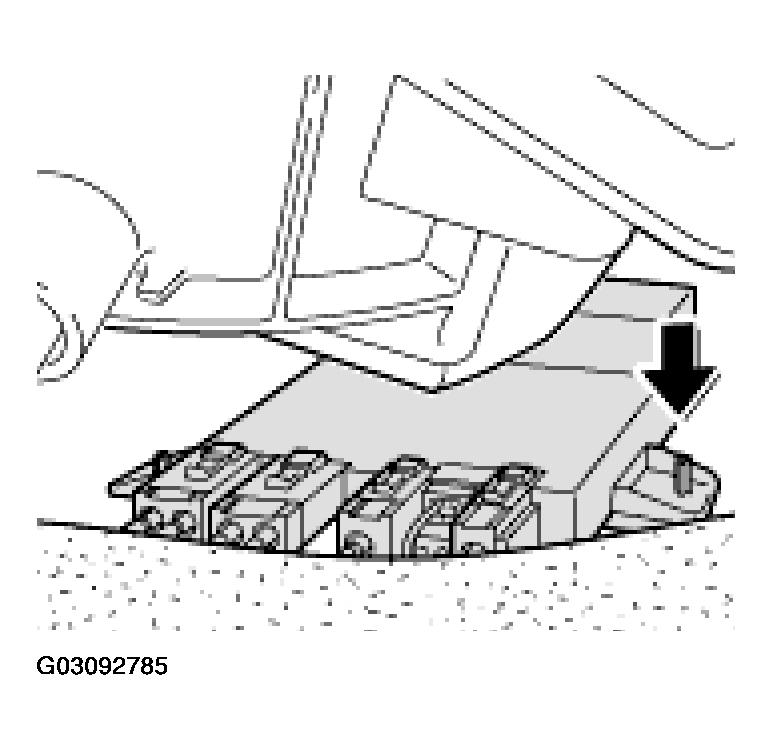

Fig 3: Fastening Antenna Control Unit Control Unit With Clip To Holder
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Install the right trim under the instrument panel. Refer to REMOVING AND INSTALLING DOOR TRIM PANEL .
