Installing The Antenna Amplifier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the antenna amplifier on the A-pillar and screw down the fastening screws -6-  . See Fig 1 .

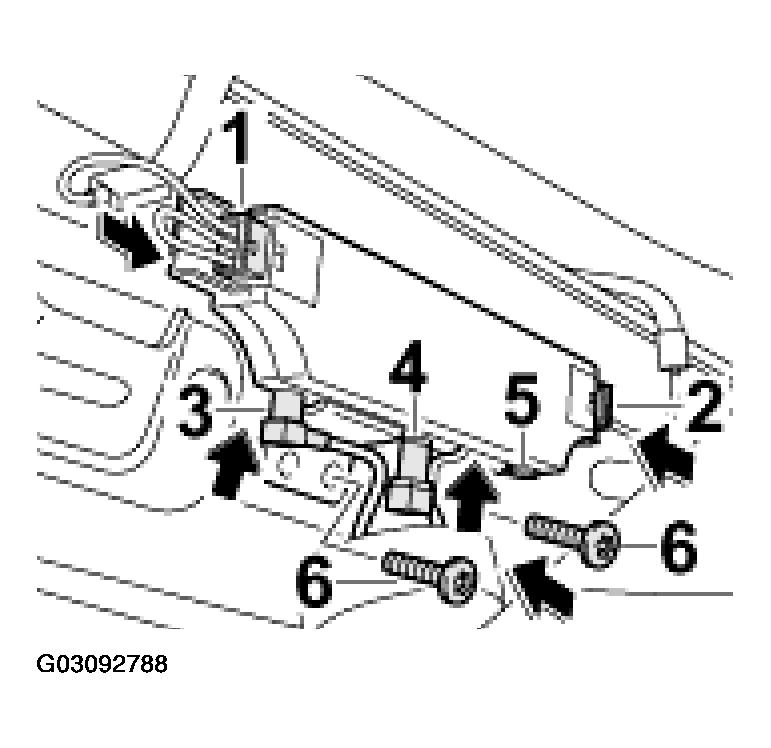

    Fig 1: Installing Antenna Amplifier
    G03092788Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Connect the plug connections for the antenna control unit -3, 4-  on the left side, -3, 4, 5-  on the right side. See Fig 1 .
  3. Plug in the antenna plug for the windscreen -1-  and -2-  . See Fig 1 .
