Removing Control Module For Parking Assistant

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew both fastening screws -arrow-  from the cover. See Fig 1 .

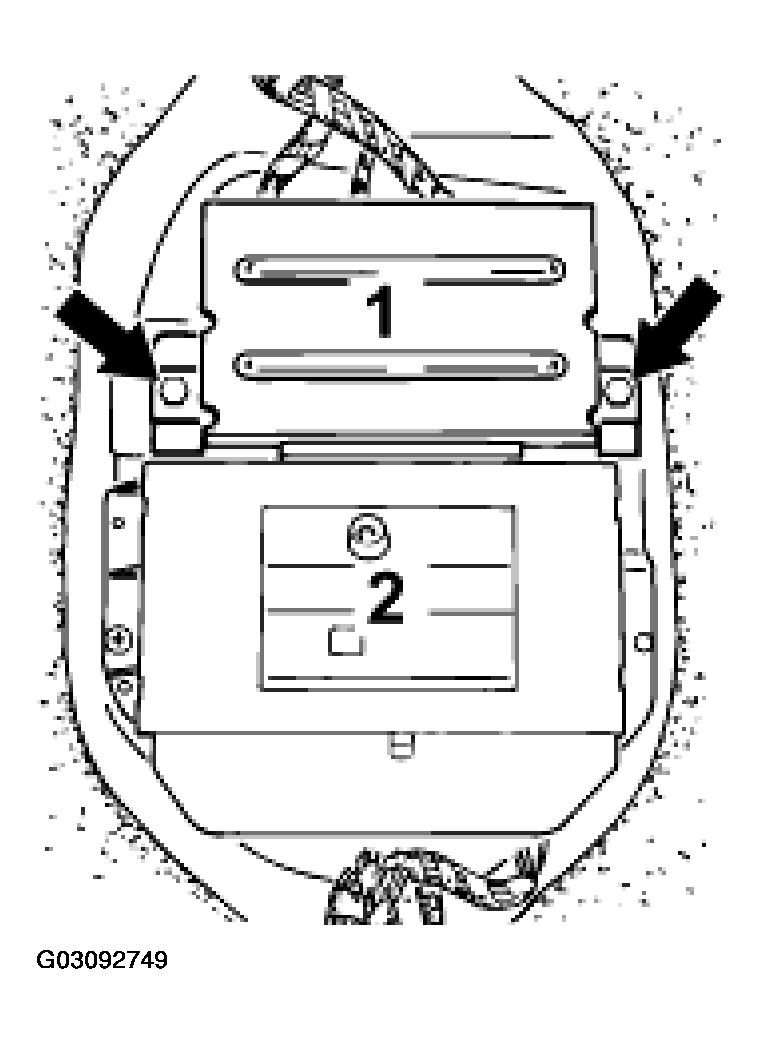

    Fig 1: Removing Control Module For Parking Assistant
    G03092749Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Turn the cover over and disconnect both electrical plugs.

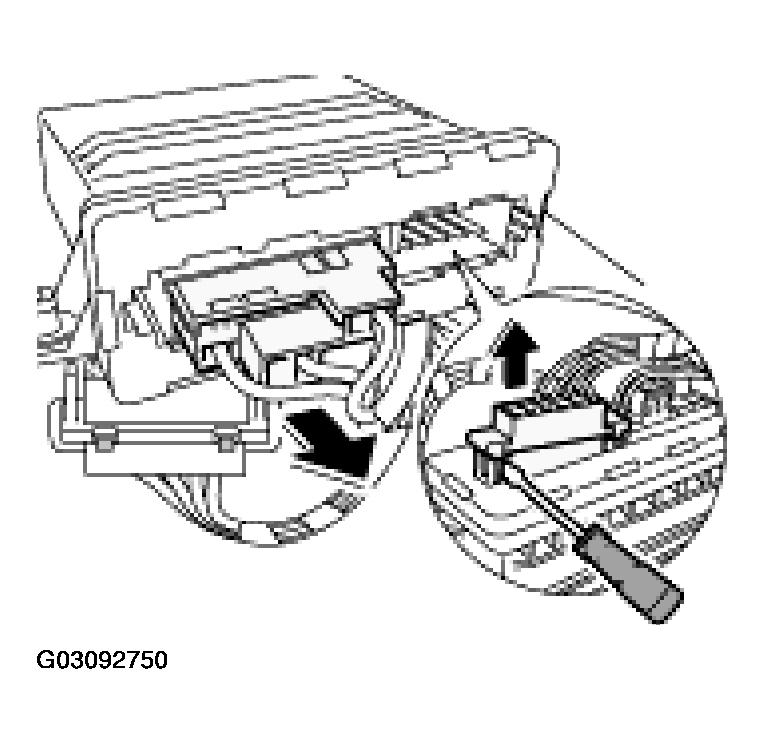

    Fig 2: Disconnecting Both Electrical Plugs
    G03092750Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Unscrew the control module from the cover with the two fastening screws.
