Installing Control Module For Parking Assistant

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert both plugs into the control module until they engage.

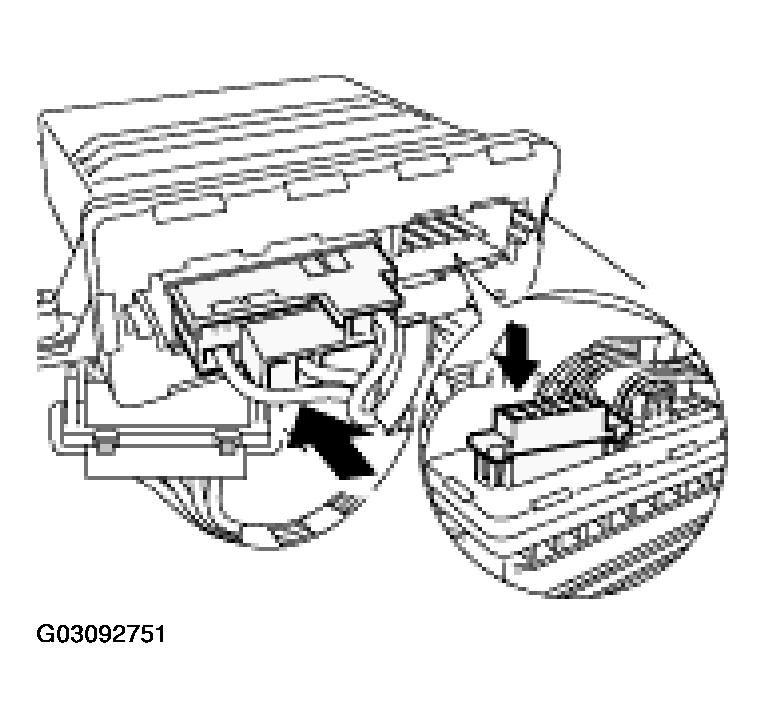

    Fig 1: Inserting Both Plugs Into Parking Assistant Control Module
    G03092751Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Fit the control module onto the cover with both fastening screws.
  3. Position the cover and screw tight with the fastening screws -arrow-.  See Fig 2 .

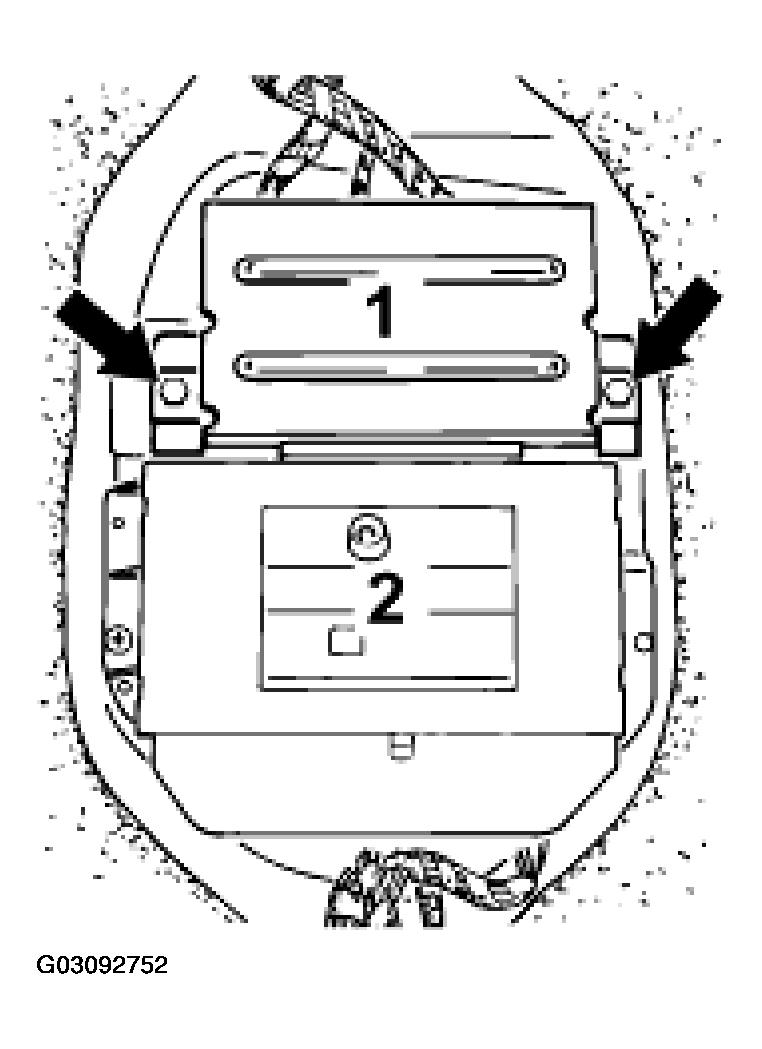

    Fig 2: Positioning Cover
    G03092752Courtesy of PORSCHE OF NORTH AMERICA, INC.
