Removing and installing the magnetic coupling: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Place the magnetic coil on the compressor housing. The locking pin must engage in the locking hole.

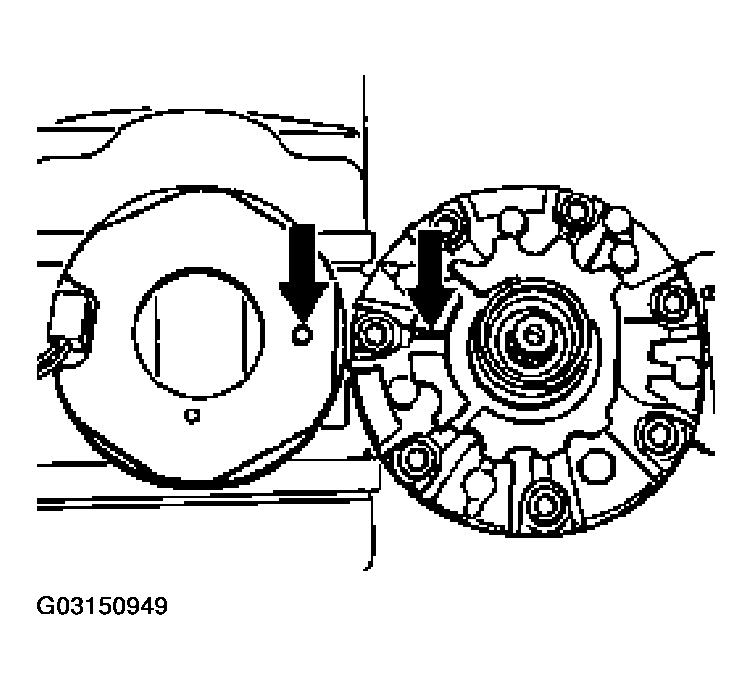

Fig 1: Locating Locking Pin And Locking Hole
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install the Seeger circlip ring. The slanted surface (arrow) of the Seeger circlip ring faces upwards (to the fastening screw).

Fig 2: Installing Seeger Circlip Ring
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Tighten the pressure plate fastening screw. Tightening torque: 14 Nm.
