Removing and installing the fluid tank: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover above the heating/air-conditioning system and fluid tank.
  2. Remove refrigerant by suction using the service unit.
  3. Undo the hose clamp on the fluid tank. Undo both hexagon-head bolts on the fluid tank and remove the fluid tank upwards. Immediately close lines with plugs so that they are air-tight.

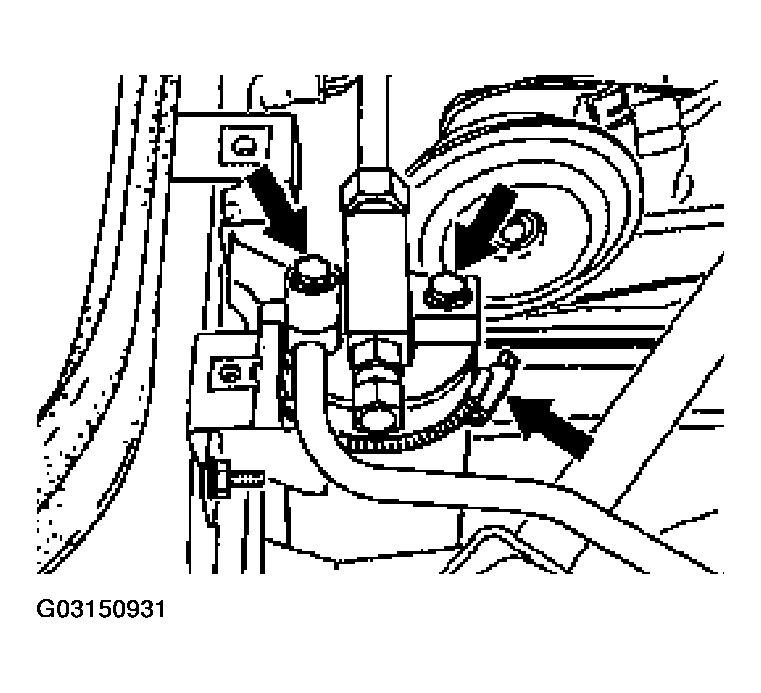

    Fig 1: Locating Hexagon-Head Bolts On The Fluid Tank
    G03150931Courtesy of PORSCHE OF NORTH AMERICA, INC.
