Removing and installing the expansion valve: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover above the heating/air-conditioning system.
  2. Remove refrigerant by suction with the service unit.
  3. Undo the air-conditioning lines at the expansion valve. Close connections and lines immediately with plugs so that they are air-tight.
  4. Undo the expansion valve and remove it. Immediately close the lines to the evaporator with plugs so that they are air-tight.

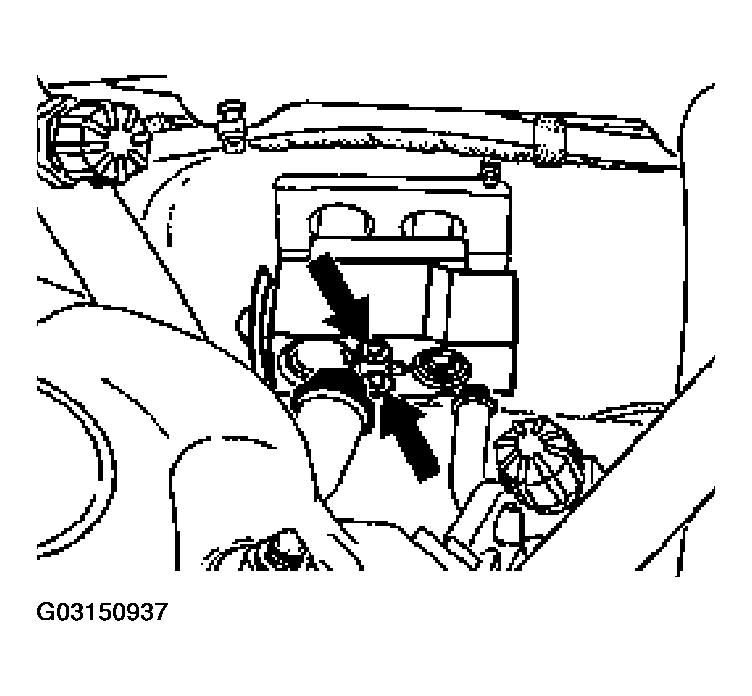

    Fig 1: Removing Expansion Valve
    G03150937Courtesy of PORSCHE OF NORTH AMERICA, INC.
