Removing and installing pressure switch for the air-conditioning system: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover above the heating/air-conditioning system.
  2. Remove refrigerant by suction using the service unit.
  3. Pull off the cable plug on the pressure switch.

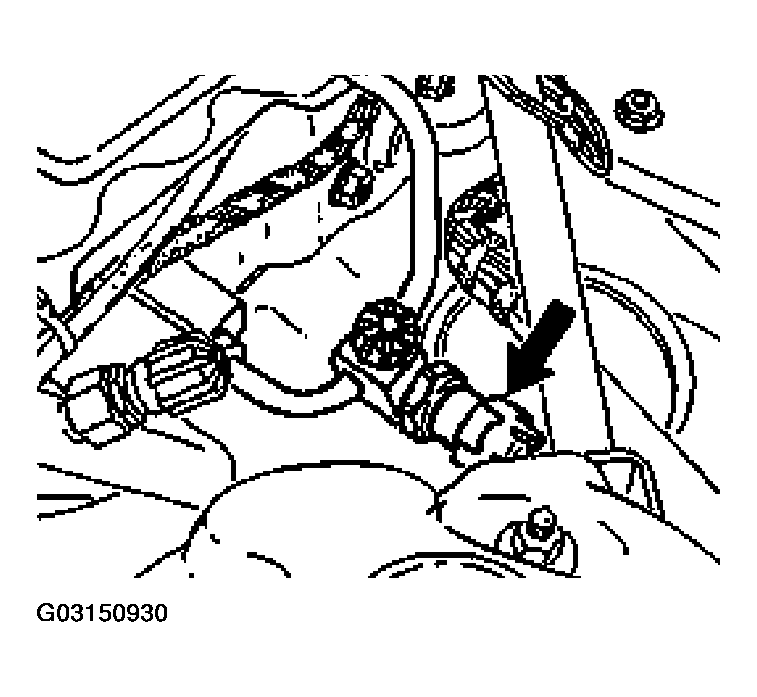

    Fig 1: Pulling Off Cable Plug On Pressure Switch
    G03150930Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Undo and unscrew the pressure switch.
