Removing and installing interior temperature sensor: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull off cover for temperature sensor. Undo three Torx screws of the right side vent and carefully pull the side vent out of the dashboard. One Torx screw is located behind the cover.
  2. Press locking tabs together slightly and remove temperature sensor from the dashboard.

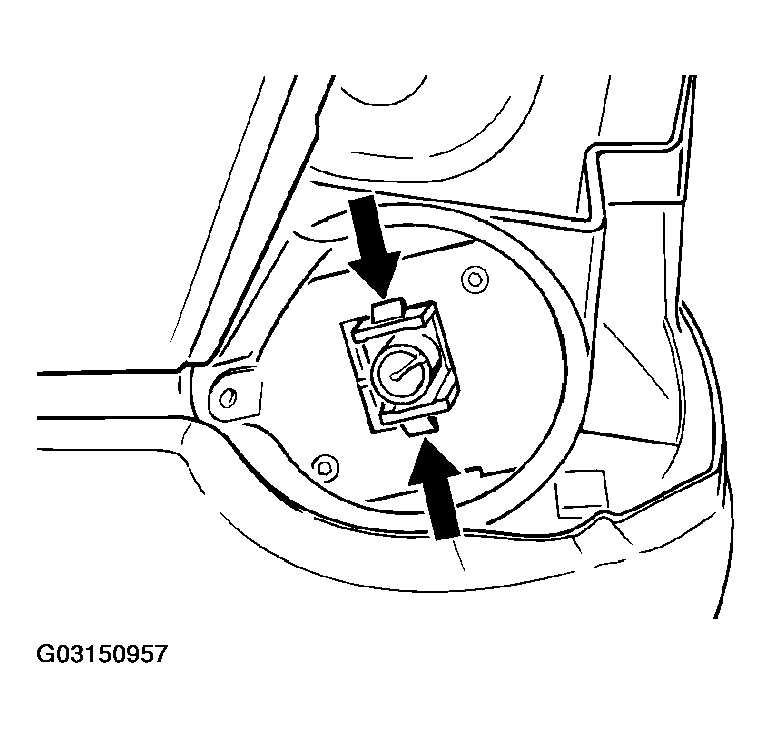

    Fig 1: Pressing Locking Tabs Together Slightly To Remove Interior Temperature Sensor
    G03150957Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Pull off electrical plug connection.
