Removing and installing footwell blower outlet sensor: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove footwell bulkhead. Unclip centre console cover at the front and remove the footwell vent (3 screws).
  2. Turn blower outlet sensor by 90° and pull it out.

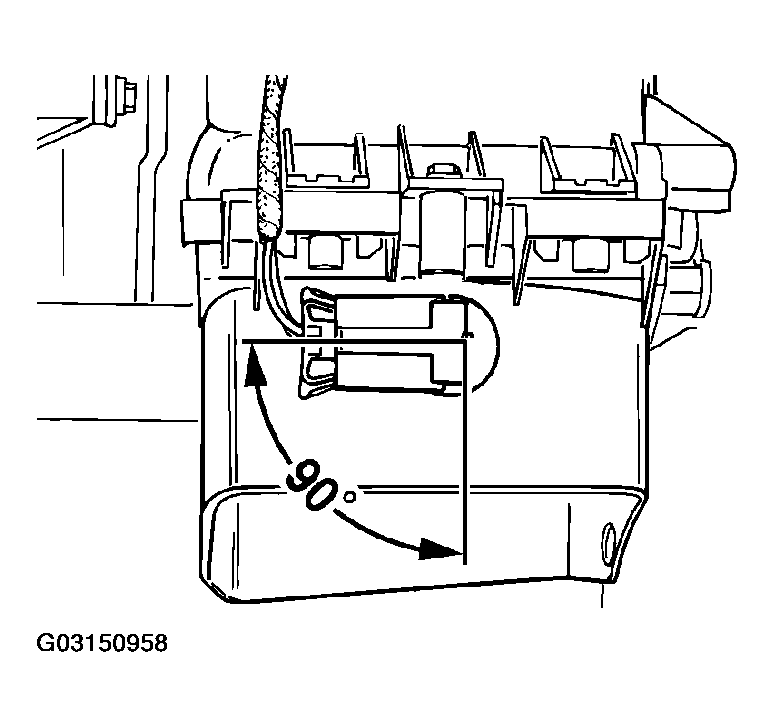

    Fig 1: Removing Footwell Blower Outlet Sensor
    G03150958Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Pull electrical plug connection off blower outlet sensor.
