Removing and installing fan for condenser: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Remove front wheel, wheel housing liner and wing support.
Detach cooler bracket from the body (1 nut, 2 M8 screws). Unclip ventilation hose and ballast resistor. Undo retaining clips from the cooler and pull off the cooler bracket downwards.

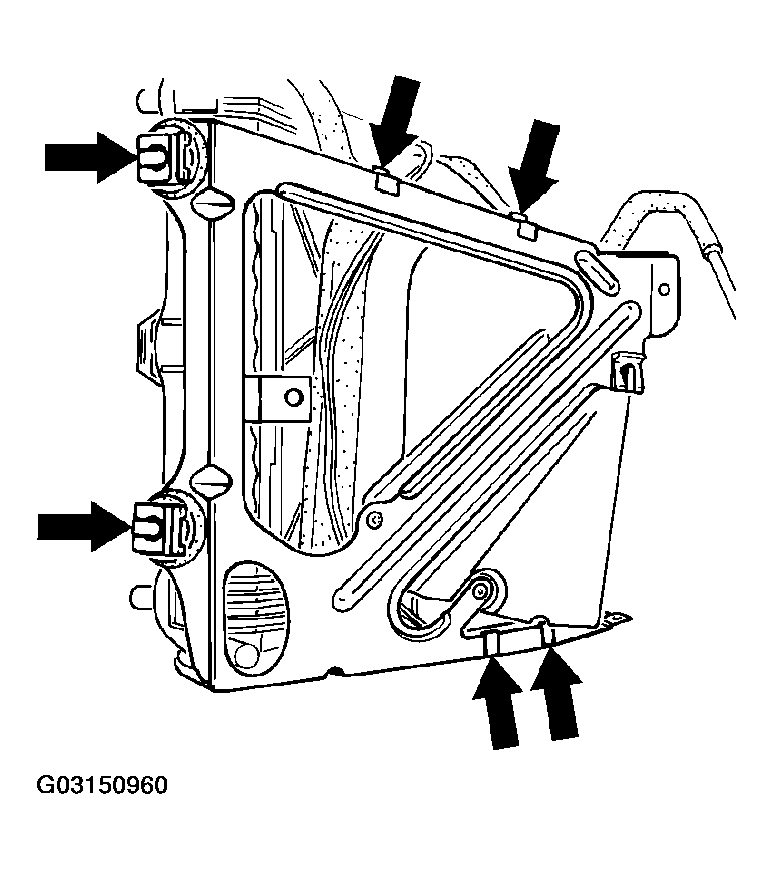

Fig 1: Detaching Cooler Bracket From The Body
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disconnect the electrical plug connection and undo retaining clips from the fan housing. Pull fan housing out of the holder, bending up the ventilation hose on the cooler at the same time.

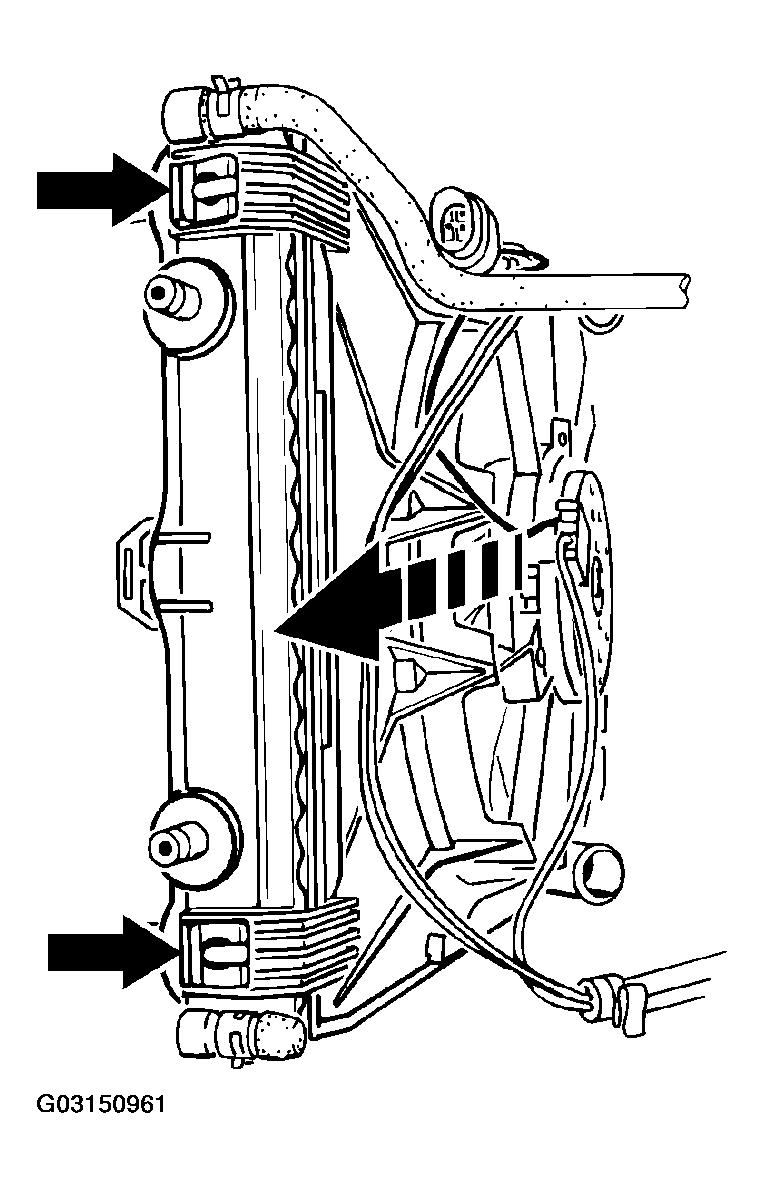

Fig 2: Pulling Fan Housing Out Of The Holder
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Detach fan motor from the fan housing and remove.

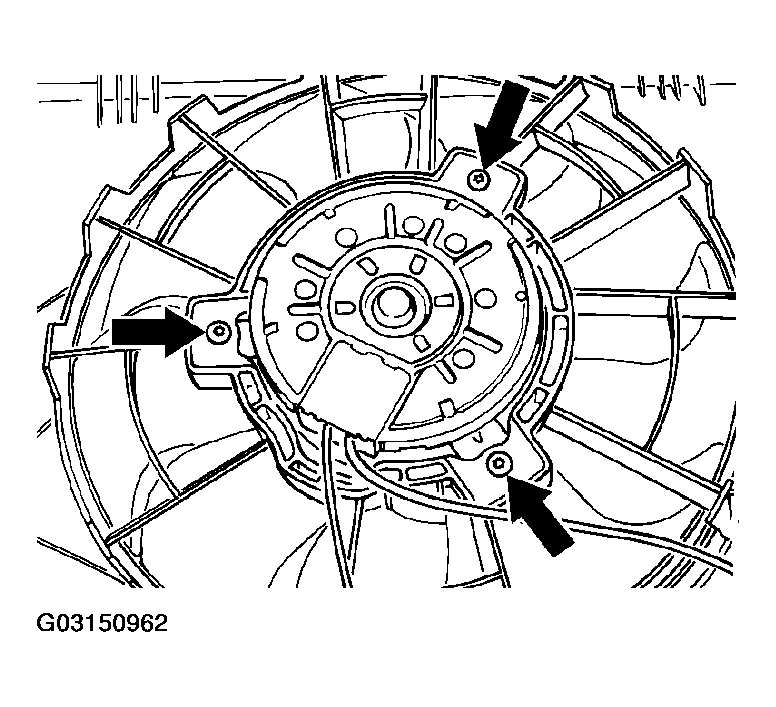

Fig 3: Detaching Fan Motor From Fan Housing
Courtesy of PORSCHE OF NORTH AMERICA, INC.
