Removing and installing drive motors of the heating/air-conditioning unit: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal and installation of drive motor for temperature valve, central valve and footwell/defrost valve. Removal or installation is performed with the heating/air-conditioning unit installed.

Drive motor for temperature valve

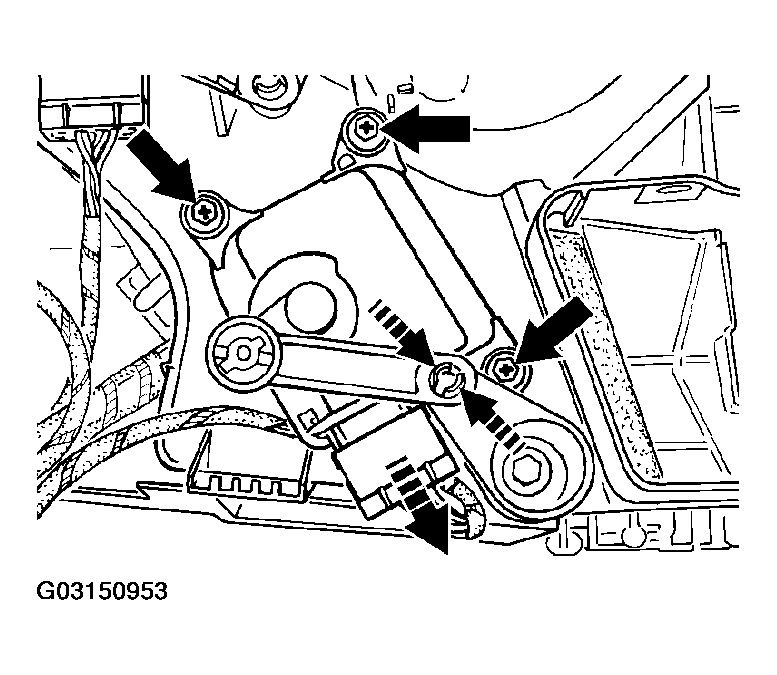

Fig 1: Identifying Drive Motor For Temperature Valve

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Drive motor for central valve

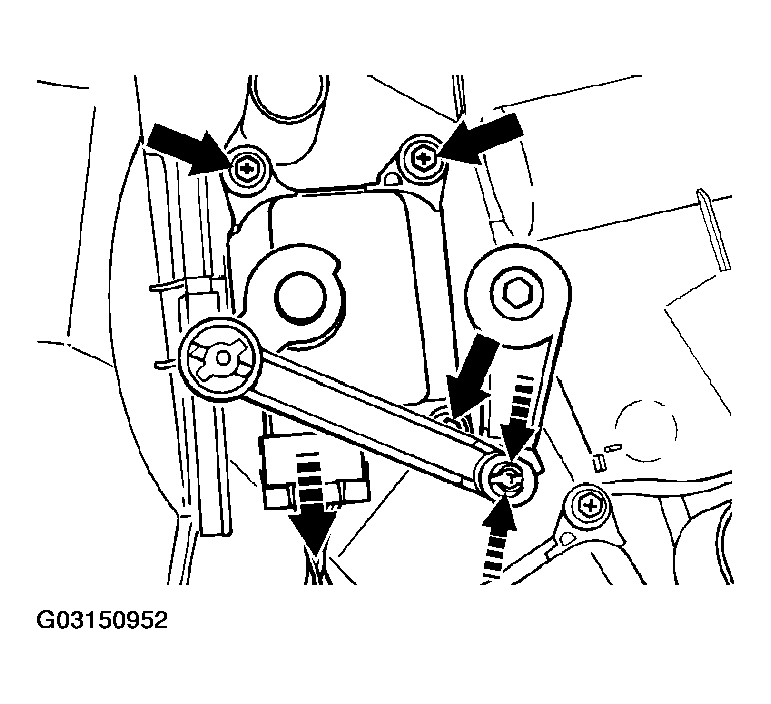

Fig 2: Identifying Drive Motor For Central Valve

Courtesy of PORSCHE OF NORTH AMERICA, INC.
