Drive motor for footwell/defrost

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew drive motor with bracket from the heating/air-conditioning unit (2 screws).

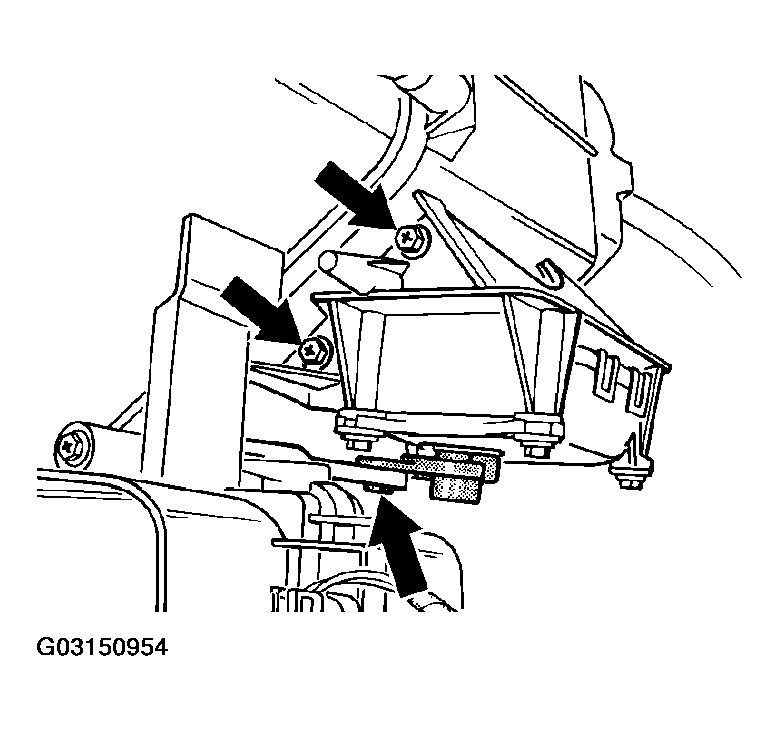

    Fig 1: Locating Drive Motor For Footwell/Defrost
    G03150954Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Swivel drive motor to the side and disengage the deflection lever.
  3. Disconnect electrical plug connection and detach bracket from the drive motor.
