Removing and installing drive motors for fresh-air motor/recirculation valve: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. The recirculation button must be pressed before removal (fresh-air supply blocked). The drive motor can be removed from the installed heating/air-conditioning unit in this position (recirculation).
  2. Remove footwell and right air guide. Disconnect electrical plug connection of the drive motor and undo fastening screw.
  3. Disengage pivot pin on the adjusting lever with a screwdriver.

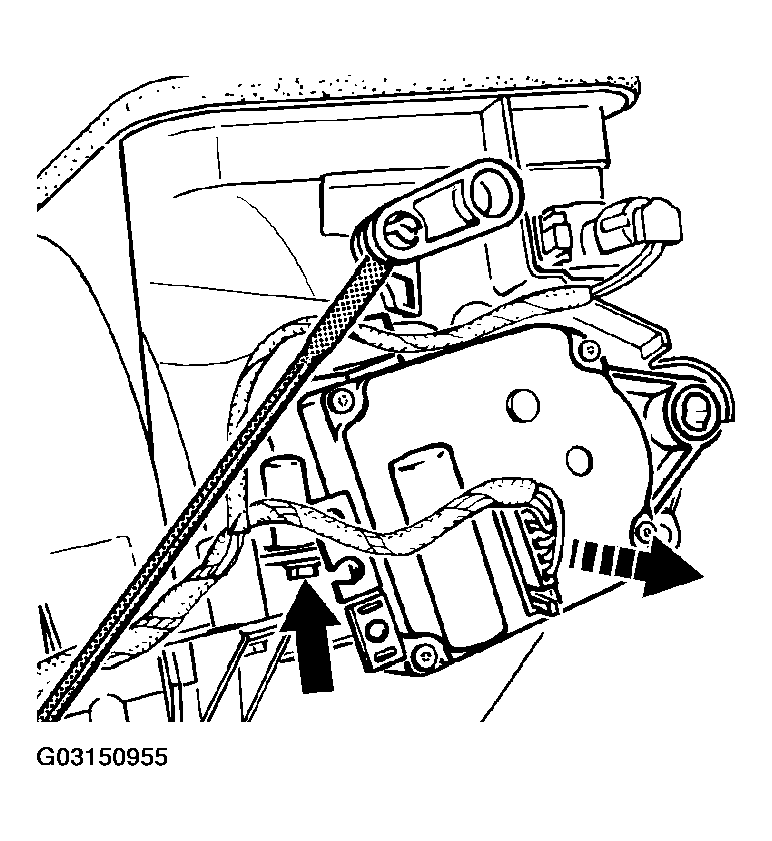

    Fig 1: Disengaging Pivot Pin On Adjusting Lever With A Screwdriver
    G03150955Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Swivel down the drive motor and remove it to the side.
